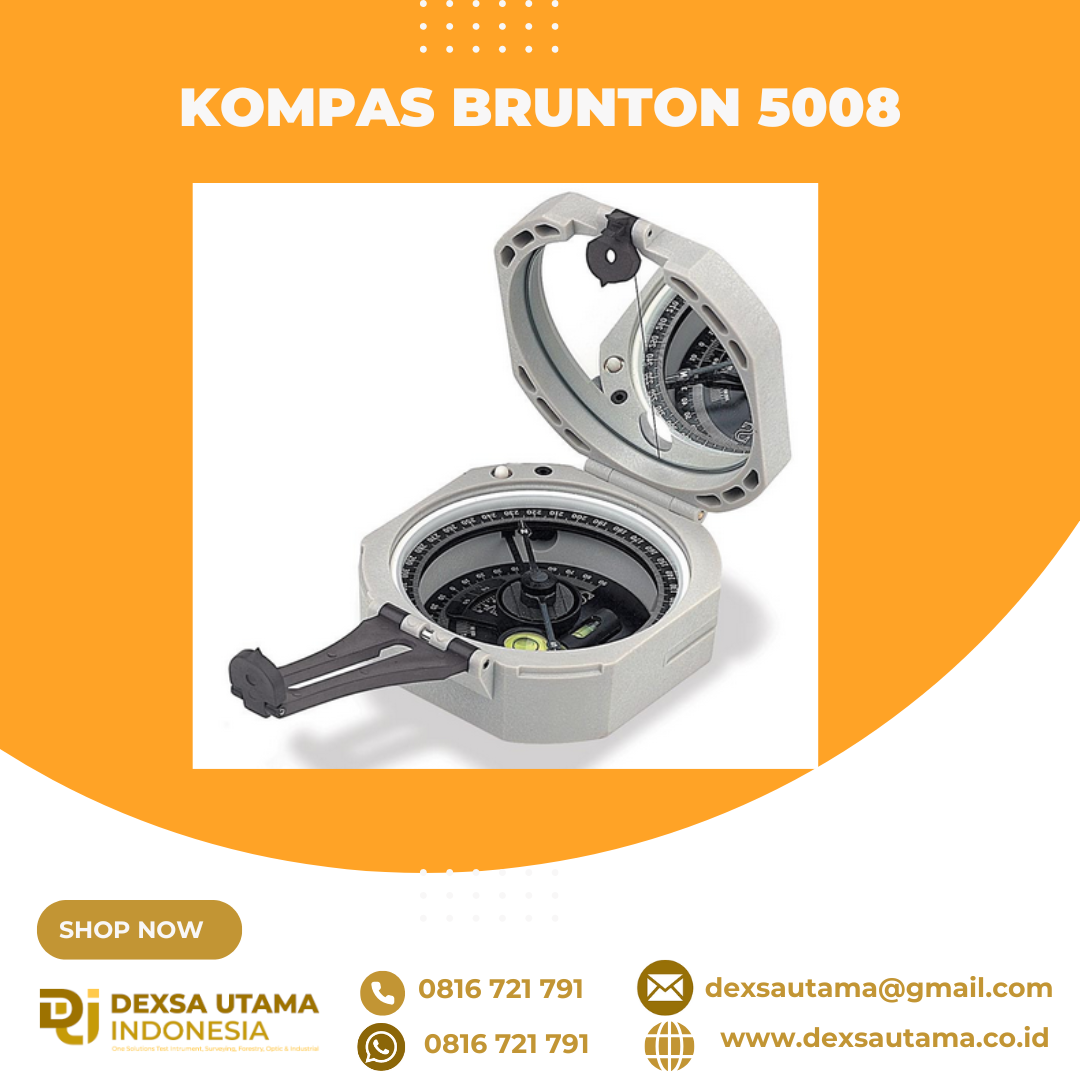

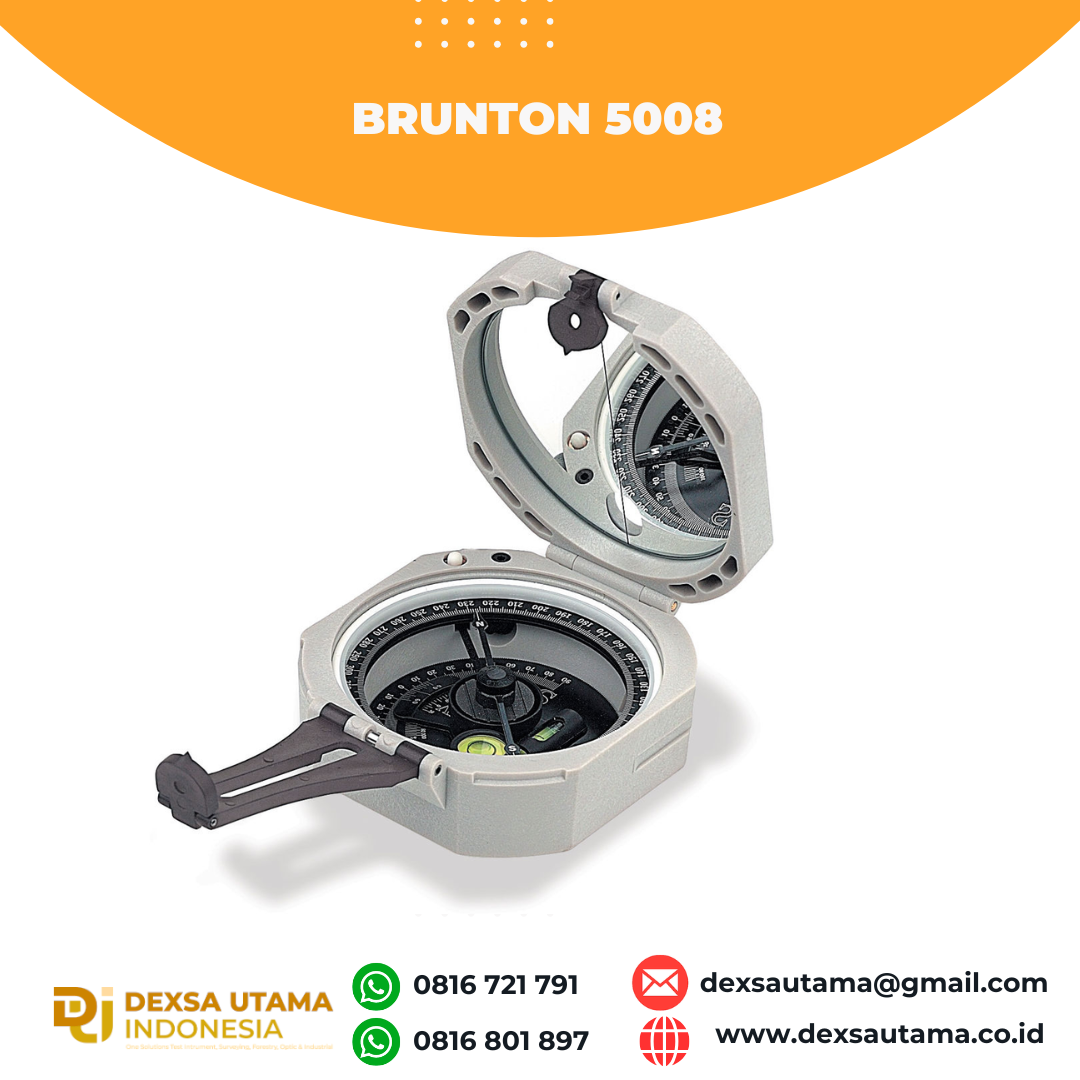

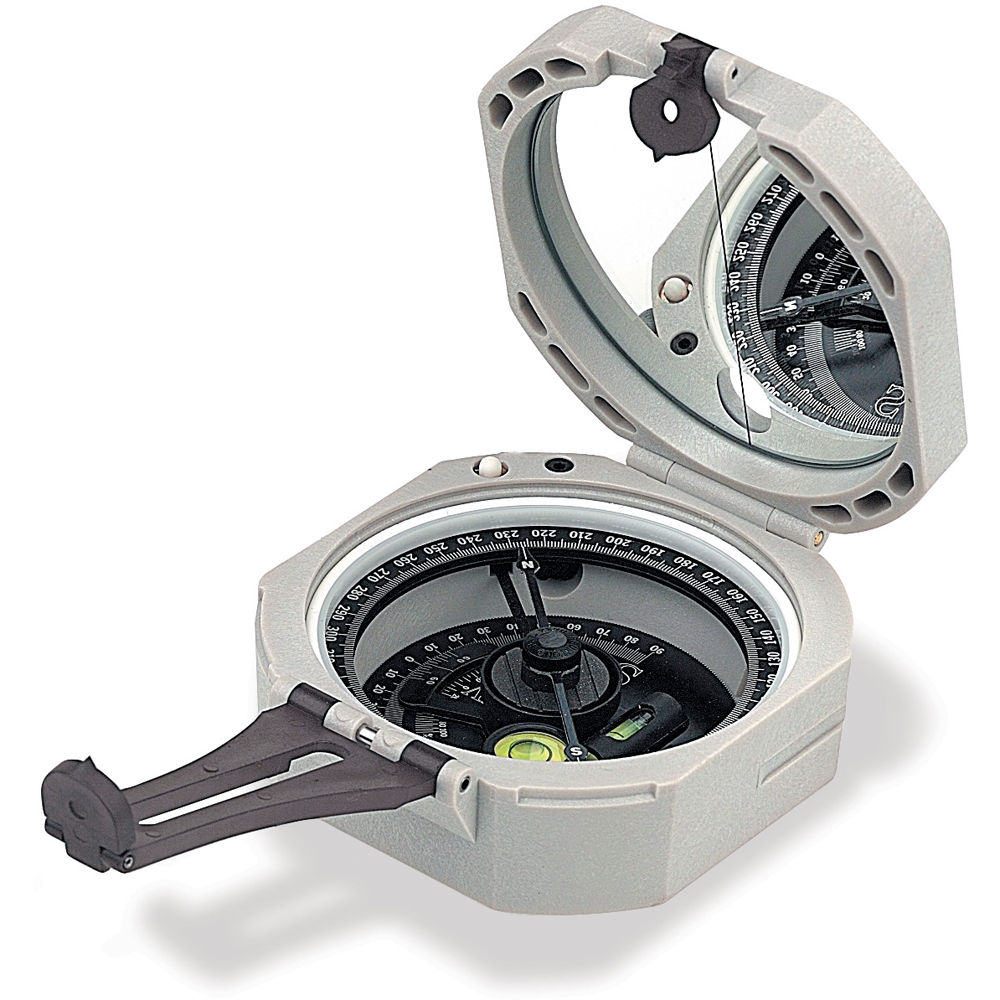

Kompas Brunton 5008

FEATURES

• Traditional transit measurement method.

• The composite body on the ComPro is ultralight and tough.

• The mirror enables sighting and measurement of bearings and vertical angles.

• Short and long sights give the user additional functionality and accuracy when shooting bearings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world.

• Induction dampening makes for a quick-settling needle.

• The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

• Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.

• Each comes with a protective leather case, perfect for carrying your Brunton in the field.

• Made in the USA in Riverton, Wyoming.

TECH SPECS

• MEASUREMENT STYLE: Strike & Dip
• DIMENSIONS: 3.9 x 2.8 x 1.2 in | 10 x 7 x 3 cm
• WEIGHT: 5.7 oz | 162 g
• AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
• PERCENT GRADE: 5% graduations
• DECLINATION ADJUSTMENT: ± 180˚
