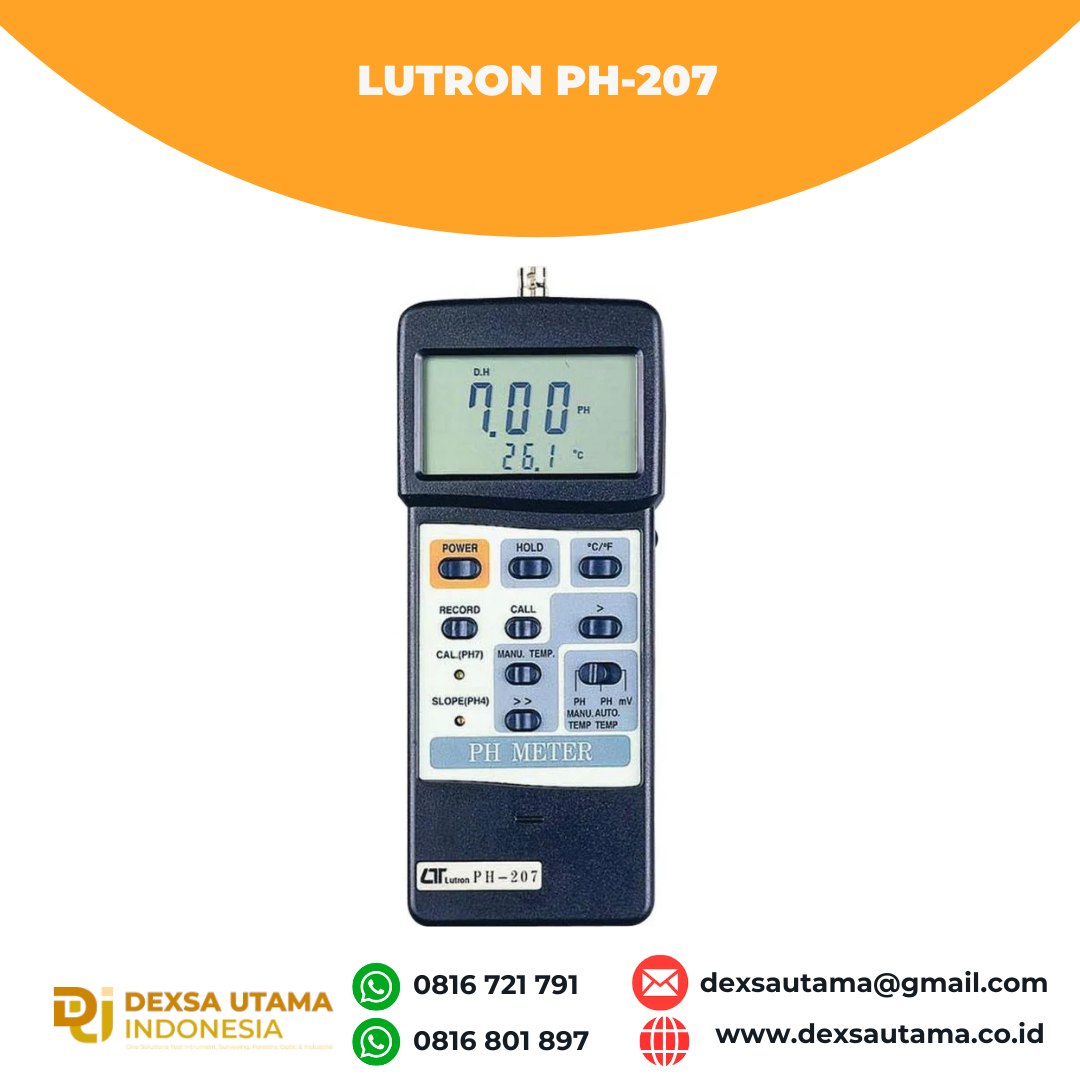

LUTRON PH-207

PH-207 – pH/ORP Meter with ATC and RS232 PC Interface

PH-207 is a high-precision bench-top meter designed for measuring pH and ORP (REDOX) values in laboratory, industrial, or field applications. It offers a wide measurement range, optional automatic temperature compensation (ATC), and RS232 PC connectivity for data logging and analysis.

Main Features:

• pH measurement range: 0.00 to 14.00 pH
• ORP (REDOX) range: 0 to ±1999 mV
• Automatic Temperature Compensation (ATC): using optional external sensor TP-07
• High accuracy: suitable for professional use
• RS232 interface: for PC connection and data transfer
• BNC input connector: compatible with standard pH and ORP electrodes
• Large, easy-to-read LCD display
• Data Hold and Auto Power Off functions

Electrode Compatibility (not included):

• pH Electrodes: PE-03, PE-11
• ORP Electrodes: GE-117, GE-151
• Other BNC-compatible electrodes

Technical Specifications:

• pH Range: 0.00 to 14.00 pH
• ORP Range: 0 to ±1999 mV
• Input: BNC connector
• Temperature Compensation: Manual or Automatic (with optional TP-07 sensor)
• Display: High-contrast LCD
• Interface: RS232 (for PC connection)
• Power Supply: Standard battery or AC adapter (depending on configuration)

Package Contents:

• PH-207 Meter
• User Manual

Optional Accessories:

• ATC Temperature Probe TP-07
• pH Electrodes (e.g. PE-03, PE-11)
• ORP Electrodes (e.g. GE-117, GE-151)
• RS232 Cable and PC Software
