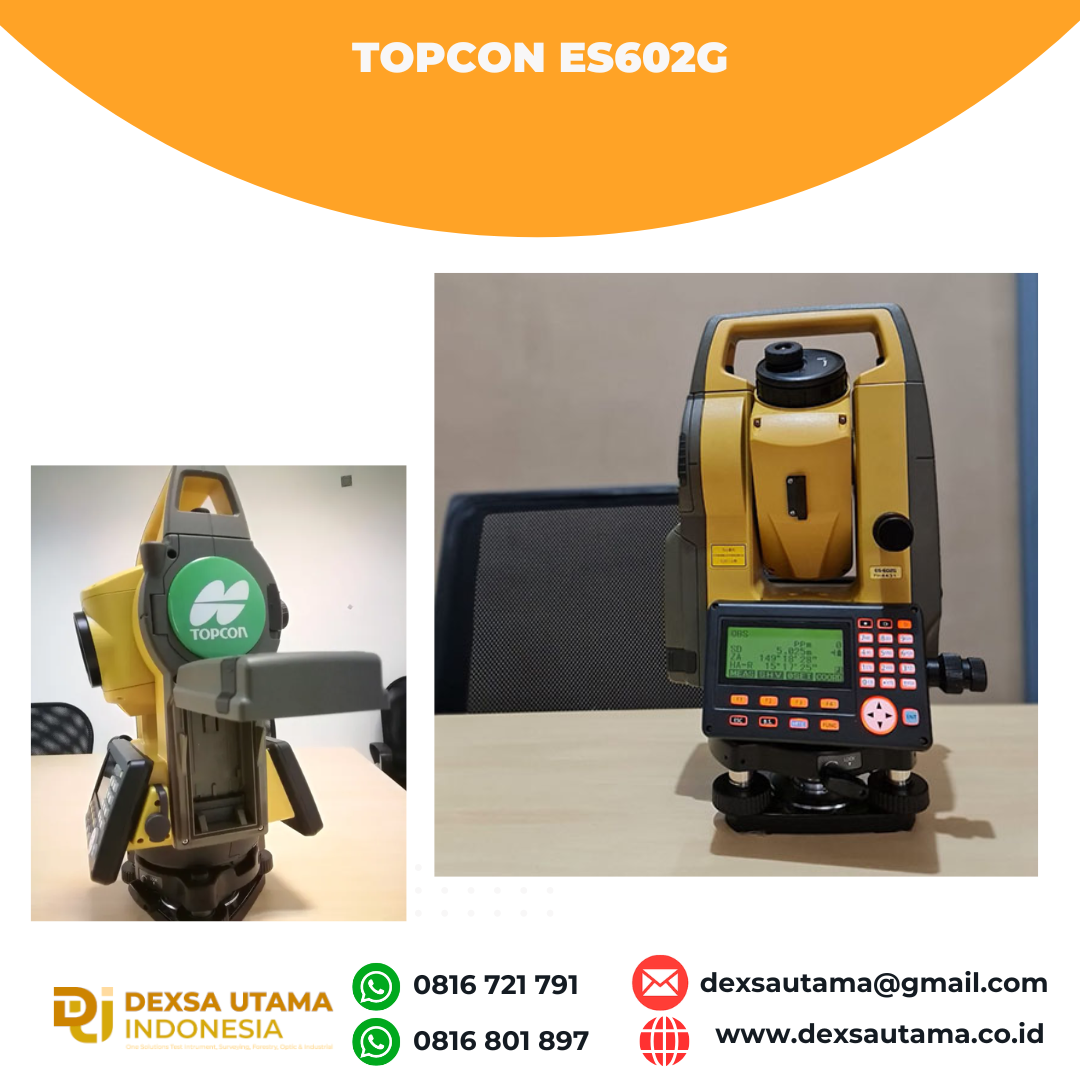

Topcon ES602G

Topcon ES602G

Rp0 + PPN 11%

  • Garansi 1 Tahun
  • Sertifikat Kalibrasi
  • Layar 2 Dipslay
  • Akurasi 2″

Request A Quote

Compare
ES-600G Technic Data
ModelES-602G
Telescope
Magnification /Resolution30X/2.5″
OthersLength of Lens: 171mm,Objective Aperture :45mm(EDM:48mm),Erect, Field Of View: 1˚30′(26m/1,000m),Minimum Focus: 1.3m, Back light:5 Class
Angle Measurements
Minimum Reading1″/5″
Angle Measurements Accuracy (ISO17123-3:2001)
Dual Axis Compensator/Collimation Error CorrectionLiquid twin screw tilt sensor
,Compensator Range ±6′/Collimator Correction
Measuring Distance Part
Laser output gradeNon prism:3R grade ,prism /reflctor sheet 1 grade
Measuring Range
(the general weather condition )		Non prism0.3~500m
Reflector SheetRS90N-K:1.3~500m;RS50N-K:1.3~300m;RS10N-K:1.3~100m
Mini Prism1.3~500m
Single Prism1.3~4,000m/ good weather condition*6:1.3~5,000m
Mini DisplayFine Measuring/Rapid Measuring:0.001m Tracking:0.01m
Distance Measuring Accuracy
(ISO17123-4:2001)		Non Prism(3+2ppm×D)mm*7
Reflector Sheet(3+2ppm×D)mm
Prism(2+2ppm×D)mm
Measuring TimeFine:0.9s,Rapid :0.7,Tracking:0.3s
Port and Data Management
Display/ Key BoardAdjective Contrast Ratio ,with backlight192×80point ,Dot Matrix LCDS graphic display / with backlight 25 key ( Alphabet Number keyboard) .
Operating PanelDouble Side
Trigger KeyOn the right side of instrument, A key Trigger
Data memoryInternal MemoryAbout 10,000 points
External MemoryUSB flash Memory (Max. 8GB)
PortRS-232C serial port,USB2.0(A port,to use connect with U display)
Bluetooth Model (optional)1 Grade Bluetooth, Ver.2.1 +EDR,Transfer Distance:300m*10
Others
Laser AlignmentCoaxial red EDM laser beam
Guid lightGreen Laser Diode(524nm)and red laser Diode(626nm),Work Rang: 1.3~150m
Spirit LevelElectronic Spirit Level6′(inner circle )
Circle Spirit Level10′/2mm
Laser Plummet ( Optional)2 Grade laser products, Red laser Diode (635nm±10nm),Plummet Accuracy:<=1.0mm/1.3m
Optics PlummetMagnification:3X,Minimus Focus:0.3m(From Tribrach)
Dustproof and WaterproofIP66(ICE 60529:2001)
Work Temperature-20~+60ºC
Size(including handle)191mm(W)×181mm(L)×348mm(H)
Weight (including Handle and Battery)5.6kg
Power System
BatteryBT-L2 On Board BatteryRecharger Battery
Work TimeAbout 25 Hours ( the different between the angle measuring and distance measuring 1 time /30s)
Berat1 kg

Kelengkapan

• 1 unit Total Station Topcon ES602G
• 1 unit Batterai
• 1 unit Charger
• 1 unit Prisma Single
• 1 unit Prisma Polygon
• 1 unit Pole / Stick Prisma
• 2 unit Alumunium Tripod
• 1 Lembar Sertifikat Kalibrasi
• 1 Lembar Garansi 1tahun
