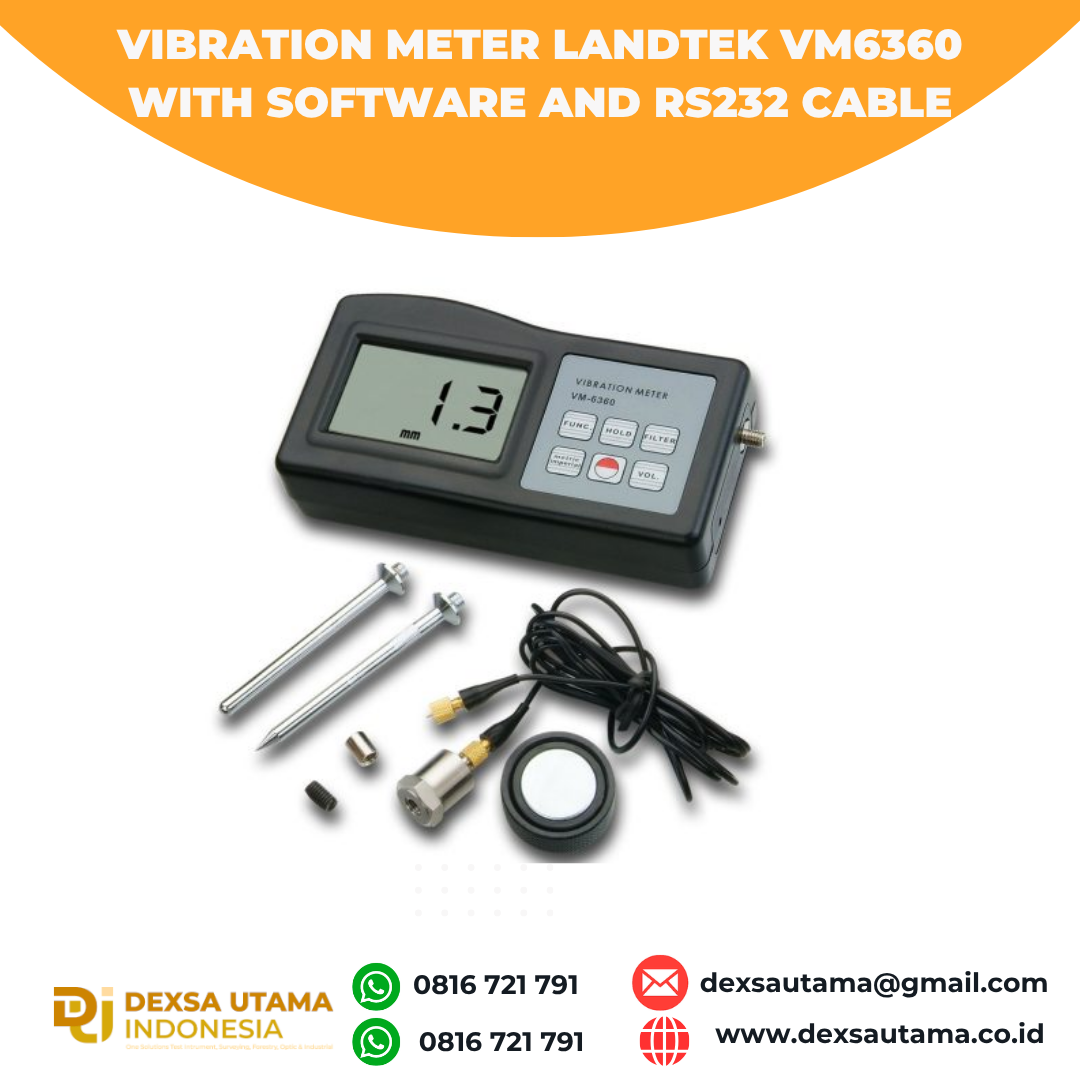

Vibration Meter Landtek VM6360 with Software and RS232 Cable

Vibration Meter Landtek VM6360 with Software and RS232 Cable

Application:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.

Specifications

Specification:
Sensor Piezoelectric Accelerometer
 Measuring Range
 Acceleration: 0.1~400 m/s²   0.3~1312 ft/s²   0.0~40 g   Equivalent Peak
 Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS
 Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak
 Frequency Range Acceleration: 10 Hz ~ 1k Hz   10 Hz ~ 10k Hz
 Velocity: 10 Hz ~ 1k Hz
 Displacement: 10 Hz ~ 1k Hz
 Accuracy 5 % of Reading + 2 digits
 Metric / Imperial Conversion
 Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
 Max. Value Hold
 Power Off Manual Power Off or Auto Power Off
 Battery Indicator Low Battery Indicator
 Data Output USB, RS-232, Bluetooth
 Operating Conditions Temperature: 0~50 °C Humidity: <90 %RH
 Power Supply 4 x 1.5V AAA size (UM-4) Battery
 Dimensions 124 x 62x 30 mm
 Weight 120 g (Not Including Batteries)
Standard Accessories:
1. Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
8. USB, RS-232 data cable with software

Ulasan

Belum ada ulasan.

Hanya pelanggan yang sudah login dan telah membeli produk ini yang dapat memberikan ulasan.

Kategori: Tag:

Produk Terkait

  • Lutron VB-8227SD
    wishlist

    Lutron VB-8227SD

    Lutron VB-8227SD 4in1 Vibration Meter (Photo, IR Temp., Type K Temp.) SD Card SD Card real time data recorder 4 in 1, + Photo tach., IR Temp., Type K Temp. VIBRATION METER Model : VB-8227SD * Real time data logger, save the data into the SD memory card and can be downloaded to the Excel, …

    Lutron VB-8227SDRead More

    Baca selengkapnya
    Add to Wishlist
  • Vibration Meter Smart Sensor AS63B
    wishlist

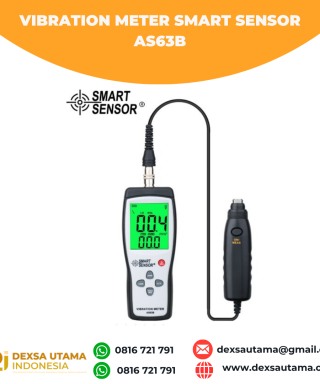

    Vibration Meter Smart Sensor AS63B
