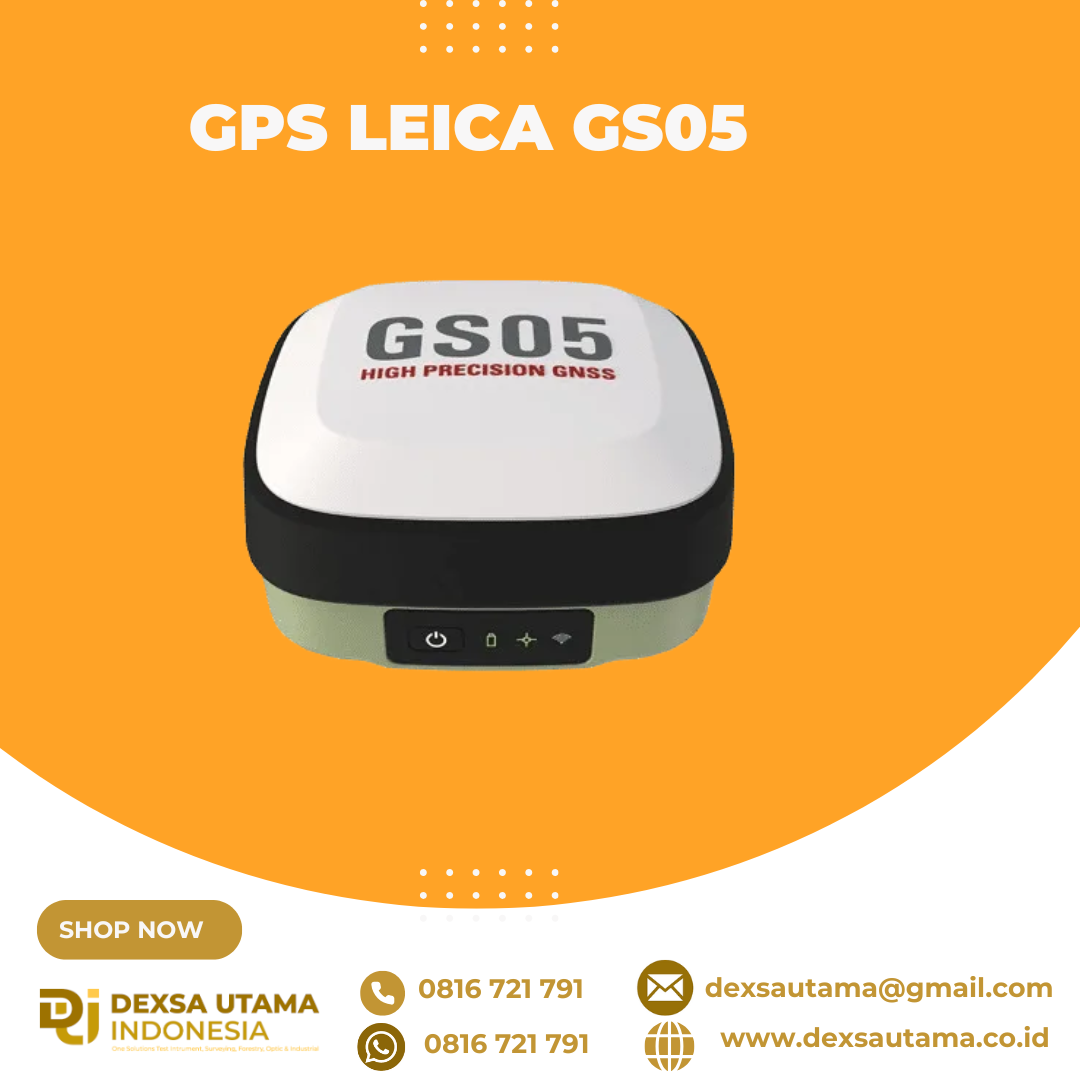

GPS RTK LEICA GS05
Rp0 + PPN 11%
Hubungi Kami :
0816 721 791
dexsautama@gmail.com
Lightweight, but feature heavy
Small enough to fit in the palm of your hand and barely noticeable on top of your pole, the GS05 packs a lot of tech into just 0.75 kilograms. With 4G, UHF radio, a 10-hour internal battery, tilt compensation, and IP-rated durability, you’ll be amazed at what this lightweight powerhouse is capable of.
Tilt compensating
The GS05 includes Leica Geosystems’ proven tilt compensation, which is both calibration-free and immune to magnetic disturbances.
Forget the bubble and focus on the task at hand, saving time and effort. Measure points without breaking stride and stake points quicker and simpler than ever.
Trustworthy
The GS05 is built on Leica Geosystems’ reputation for quality. It seamlessly integrates with Leica Captivate field software, Captivate tablets and controllers, Leica Infinity, and GeoCloud Drive, and can even be combined with total station operation as a SmartPole. Maintenance, service and support are all available through Active Customer Care.
Spesifikasi
GNSS TECHNOLOGY & SERVICES
QZSS | SBAS
Enabled through future firmware updates
and traceability
MEASUREMENT PERFORMANCE & ACCURACY
Network RTK
Hz 10 mm + 0.5 ppm | V 20 mm + 0.5 ppm
Static and rapid static (phase)
Hz 5 mm + 0.5 ppm | V 10 mm + 0.5 ppm
COMMUNICATIONS
802.11 b/g/n
NMEA output
Network RTK
NMEA 0183 v4.00 & v4.10 and Leica proprietary
VRS, FKP, iMAX, MAC (RTCM SC 104)
1, 2, 3, 4, 5, 7, 8, 20, 28, 34, 38, 39, 40, 41, 66
GENERAL
Data type and recording rate
Leica GNSS raw data and RINEX data at up to 10 Hz
External power supply
Operating time7
USB-C 5V chargable
Typical time up to 10 hours
Dimensions
118.9 mm x 118.9 mm x 75.5 mm
Drop
Proof against water, sand and dust
Vibration
Humidity
Bump
-40 to +65°C operating with external power
-40 to +80°C storage
Withstands topple over from a 2 m survey pole onto hard surfaces
IP66 | IP68 (IEC60529 | MIL STD 810H 506.6 Proc II | MIL STD 810H 512.6 Proc I | MIL STD
810H 510.7 Proc II)
Withstands strong vibration (ISO9022-36-08-2; ISO 9022-3:2022(E))
95% (ISO9022-12-04-2; ISO 9022-2: 2015/Amd1:2023(E) | MIL STD 810H 507.6)
ISO 9022-31-08-1; ISO 9022-3: 2022(E)
