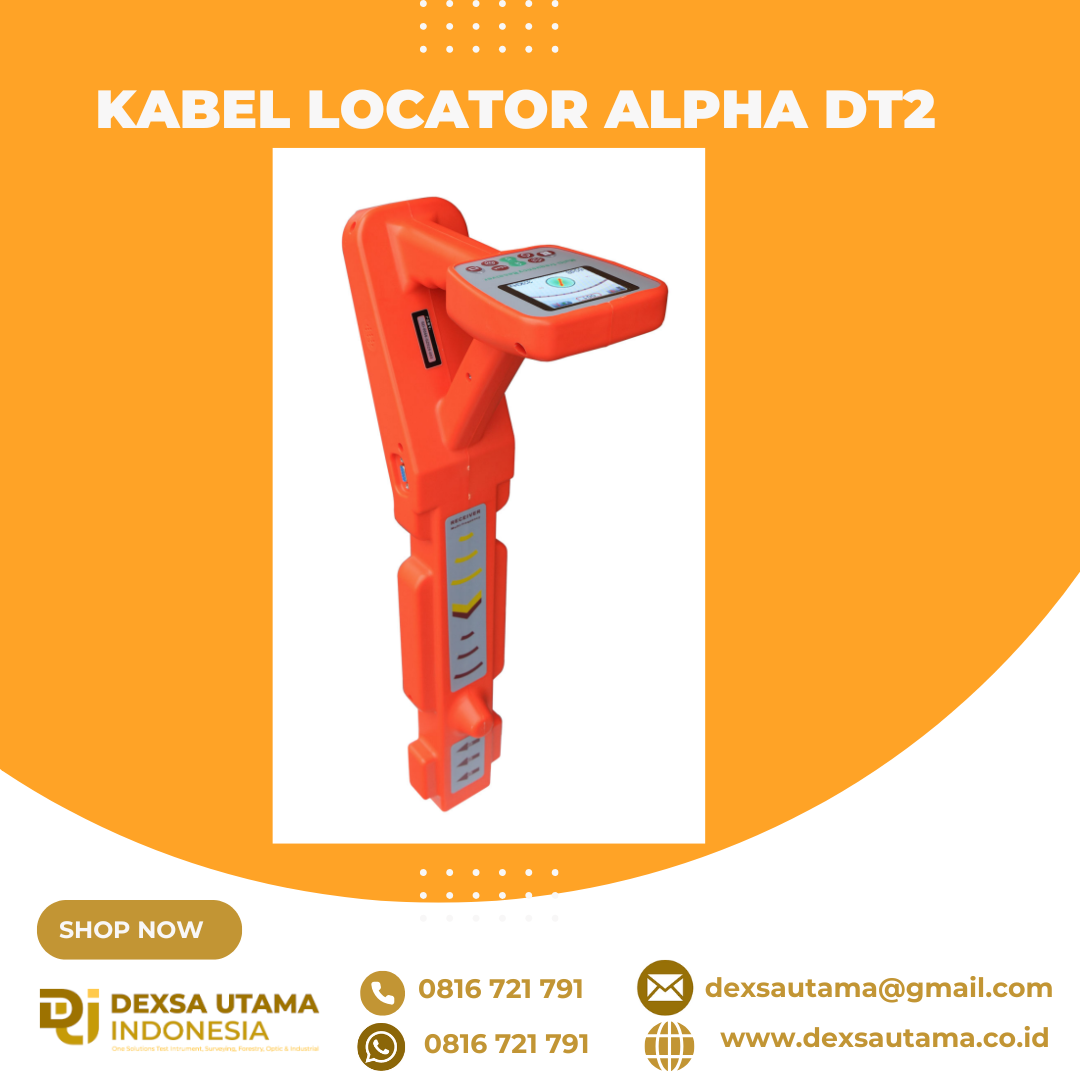

Kabel Locator Alpha DT2
The underground pipeline locator is the latest multifunctional equipment developed by AlphaGEO for detecting pipelines, pipes, cables, optical fibers, etc. It can accurately determine the position, path direction, and burial depth of underground pipelines. It can identify target cables even in complex cable networks and precisely locate cable grounding faults. As a comprehensive solution in the field of detection, it truly achieves multi-purpose functionality, significantly reducing usage costs.
Spesifikasi
Transmitter
- Display
-
High-definition backlit color LCD screen
- Operating frequency
-
512 Hz to 200 kHz
Short-circuit protection function
- Matching load
-
Automatic matching
- Maximum output power
-
10 watts
- Battery
-
Built-in rechargeable lithium battery, continuous operation for 10 hours after full charge
- Waterproof/Dust proof
-
IP65
- Dimensions
-
345x266x120mm
- Weight
-
2.8 kg
Receiver
- Display
-
High-definition backlit color LCD screen
- Guidance
-
Color intelligent compass tracking and positioning
- Passive frequencies
-
50/60Hz; Active frequency range: 50Hz to 200 kHz
Automatic identification of external accessories
- Four working modes
-
Peak, valley, wide-peak, peak-distance arrow
- Signal strength
-
Graphical qualitative display and numerical quantitative display, range 0-1000, indicating maximum signal strength
- Dynamic gain
-
Range 0dB to 100dB
- Detection depth
-
Maximum 20 meters
- Audio indication
-
Real-time tone
- Battery
-
Built-in rechargeable lithium battery, continuous operation for 10 hours after full charge
- Operating temperature
-
-20°C to + 70°C
- Waterproof/Dustproof
-
IP65
- Dimensions
-
668x110x(53-288)mm
- Weight
-
1.8 kg
Brosure
