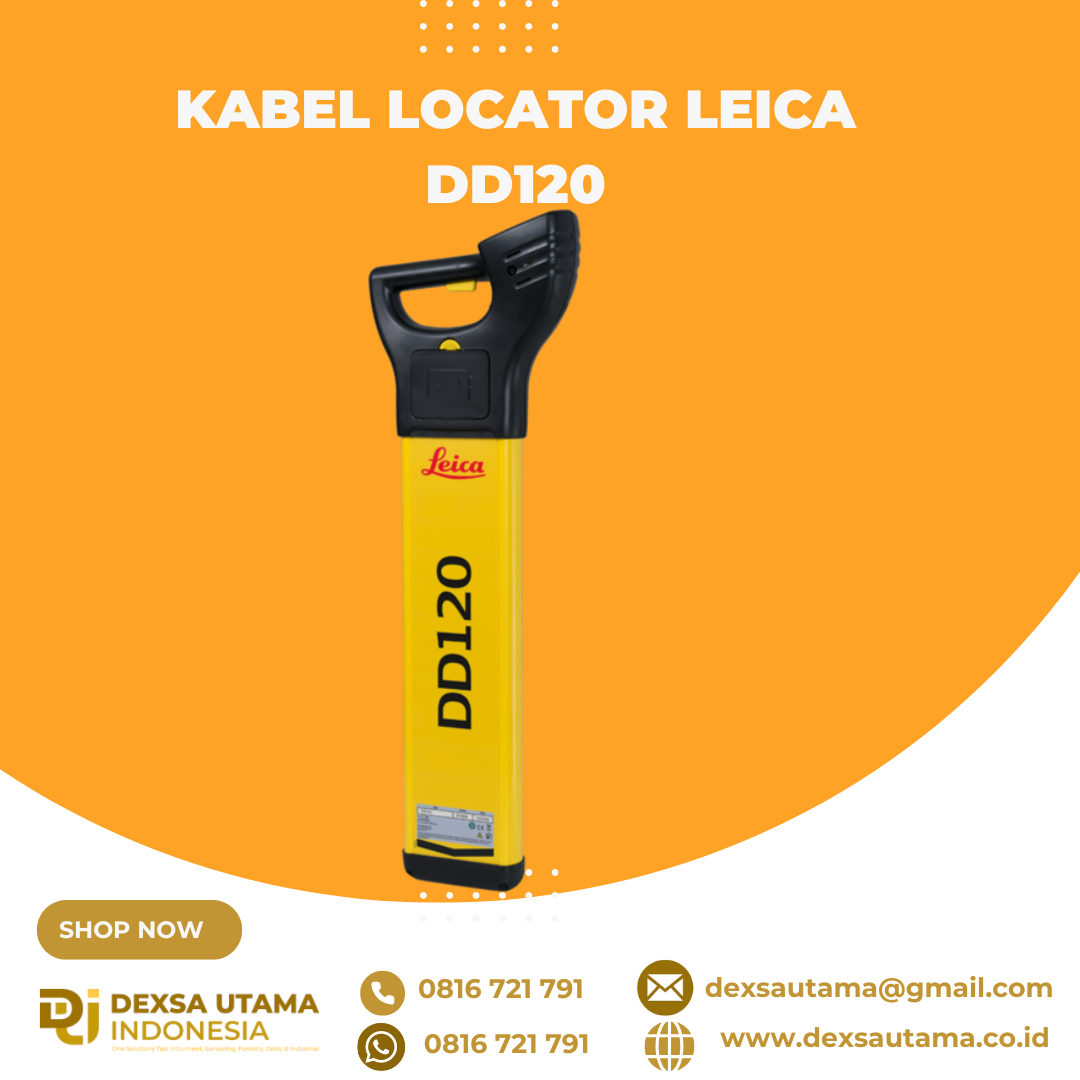

Kabel Locator Leica DD120
Simplifying Use
- Ease of Use – The locator requires minimal adjustment to locate services. Removing the sensitivity control also ensures detectable services cannot be missed where the user reduces sensitivity too much.
- In-built Self Test – A quick check can easily be performed by staff or users to ensure units are working correctly. This can be carried out when off-hiring locators or handing over to users for the first time.
- Signal Strength Indication (SSI) – features numeric signal strength readout, specifically designed for easy cable identification.
- Hazard Zone – Alert the user to shallow services within 30cm of the locator. This can enable users to change their method of breaking ground and prevent cable strikes.
Leica DD120 buried utility locator, (60Hz) mains power region Detection in Auto, Power, Radio and Transmitter modes. Features Hazard Zone, shallow service and depth estimation when used in conjunction with a signal transmitter or sonde.
Spesifikasi
Operating frequencies
| Mode | Frequency |
|---|---|
| Power | 50 Hz or 60 Hz mains electrical and harmonics |
| Radio | 15 kHz to 60 kHz |
| Auto | Power, Radio, 33 kHz |
| Transmitter | 32.768 (33) kHz 8.192 (8) kHz 512 Hz (DD130 series models) 640 Hz (DD130 series models) |
Depth estimation
| Locator | DD120 series | DD130 series |
|---|---|---|
| Depth range | Line 0.3 m to 3 m | Line 0.3 m to 3 m |
| Line 0.3 m to 3 m | Sonde 0.1 to 9.99 m | |
| Depth accuracy (Undistorted signal) | 10% | 10% |
Dimensions
General technical data
| Mode | Output |
|---|---|
| Display panel | Monochrome |
| Keypad | 2 membrane push buttons |
| Audio | 85 dBA @ 30 cm Power, Radio and Auto mode: Continuous tone (different pitch for each mode). 8 kHz and 33 kHz mode: All tones are different. Pulsed tone (different pitch for each mode). 512 Hz and 640 Hz mode: Pulsed tone (different pitch for each mode). All tones are different. |
| Battery type | 6 x LR6 (AA) alkaline |
| Typical operating time | 15 hours constant use at 20 °C/68 °F |
| Dimensions | 85 x 250 x 760 mm/3.4 x 10 x 30 inches |
| Weight (incl. batteries) | 2.7 kg with batteries |
| Temperature | Operating -20 °C to +50 °C, -4 °F to +122 °F Storage -40 °C to +70 °C, -40 °F to +158 °F |
| Protection against water, dust and sand | Conforms to IP54 |
| Humidity | 95% RH non condensing The effects of condensation are to be effectively counteracted by periodically drying out the product. |
