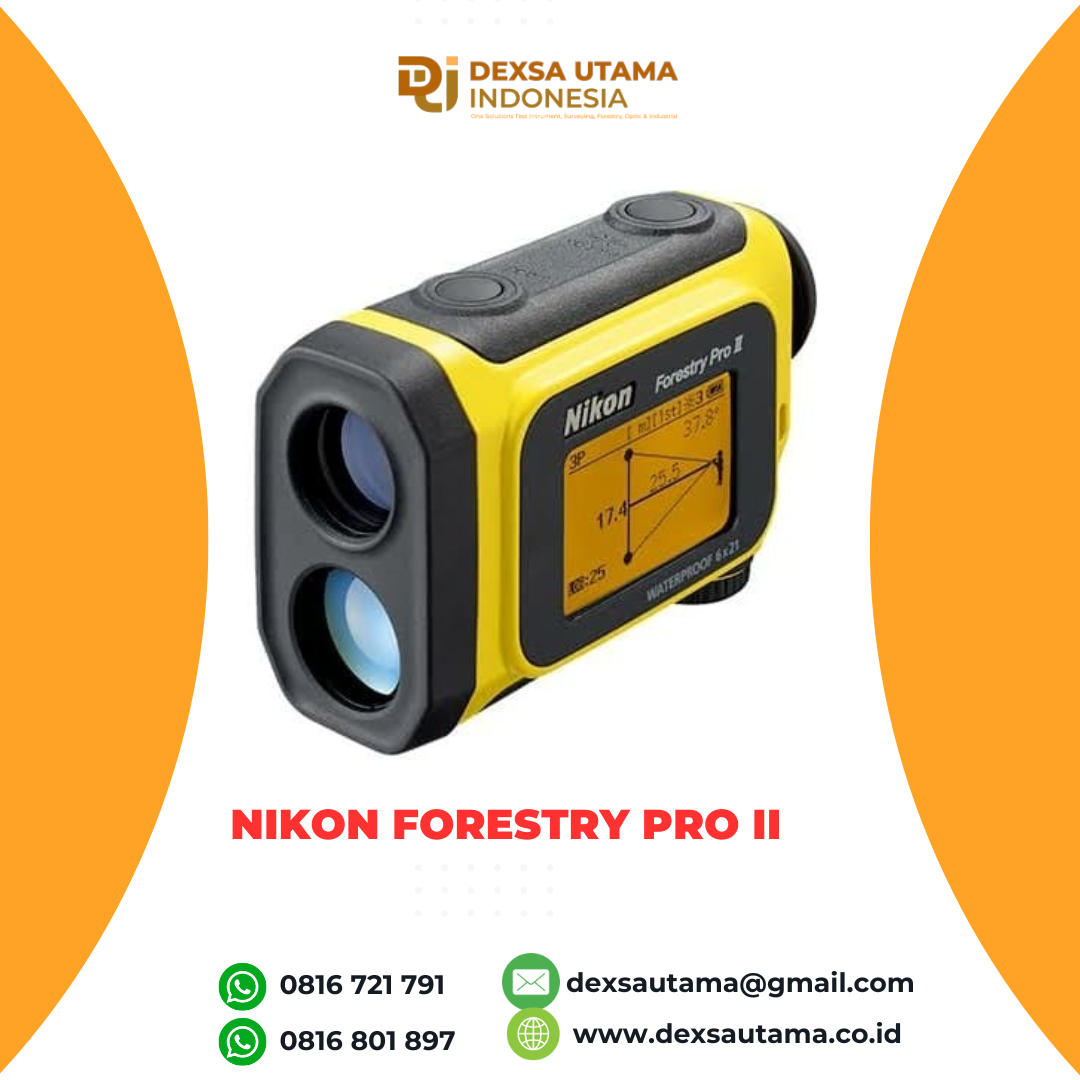

Nikon Forestry Pro II Laser Rangefinder

Specifications

• • Measurement range (actual distance)

  • Distance: 7.5-1,600 m/8-1,750 yd. Angle: ±89º

• • Distance display (increment)

  • [Internal Display] Act (Actual Distance): Main-indicator: every 0.1m/yd. Sub-indicator: every 0.1m/yd. (shorter than 999.9m/yd.) every 1m/yd. (1000.0m/yd. and over) Hor (Horizontal Distance) and Hgt (Height): every 0.1m/yd. Ang (Angle): every 0.1º [External Display] Act (Actual Distance), Hor (Horizontal Distance) and Hgt (Height): every 0.1m/yd. Ang (Angle): every 0.1º

• • Accuracy* (actual distance)

  • ±0.3 m/±0.3 yd. (shorter than 1,000 m/1,000 yd.) ±1.0 m/±1.0 yd. (1,000 m/1,000 yd. and over)

• • Magnification

  • 6x

• • Effective objective diameter

  • 21mm

• • Actual field of view

  • 7.5˚

• • Exit pupil

  • 3.5mm

• • Eye relief

  • 18.0mm

• • Dimensions (LxHxW)

  • 110mm x 74mm x 42mm

• • Weight (excluding battery)

  • 170g

• • Power source

  • CR2 lithium battery × 1 (DC 3V) Automatic power-off (after approx. 30 sec. unoperated)

• • Waterproof performance

  • Waterproof (up to 1m for 10 minutes), fogproof Battery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent (under Nikon’s testing conditions)

• • Laser classification

  • IEC60825-1: Class 1M/Laser Product FDA/21 CFR Part 1040.10: Class I Laser Product

• • Electromagnetic compatibility

  • FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003

• • Environment

  • RoHS, WEEE
