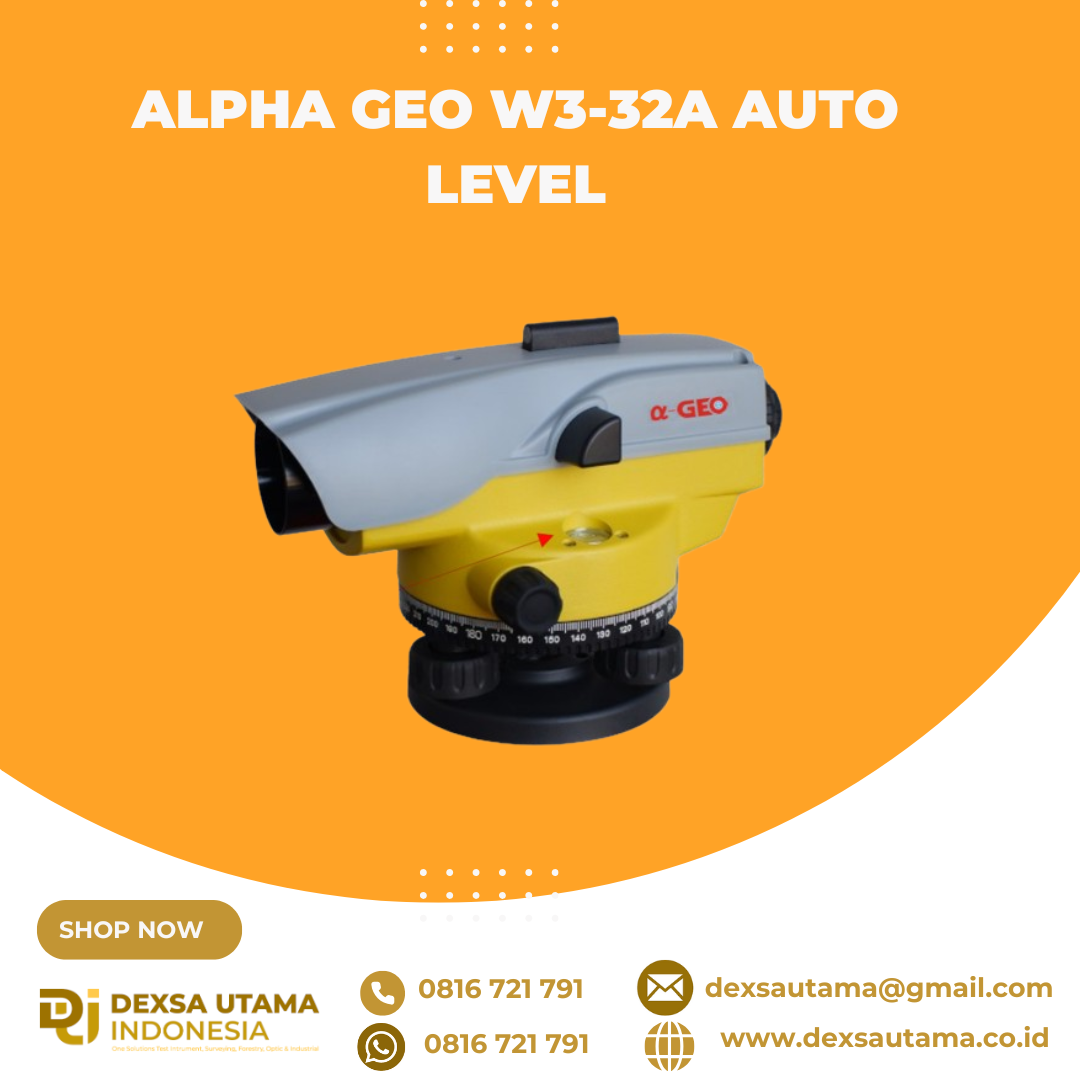

Alpha Geo W3-32a
Alpha Geo W3-32a - Gambar 2

Alpha Geo W3-32a

Rp0 + PPN 11%

Request A Quote

Compare
  • Model : Alpha Geo W3-32A
    Compensator : Air Damping
    Image : Erect : 38mm
    Objective Aperture : 1°20’
    Field Of View : 1m
    Minimum Focusing Distance : 100
    Stadia Ratio : ±0.5”
    Setting Accuracy : ±0.15′
    Accuracy : 1mm
    Circular Level Sensitivity : 8’/2mm
    Horizon Circle Graduation : 1°or 1gon
Berat25 kg

Includes

• 1 unit Alpha Geo W3-32a
• 1 unit Carry Case
• 1 unit User Manual
• 1 Lembar Sertifikat Kalibrasi
• 1 Lembar Garansi 1tahun
• 1 unit Rambu Ukur + Nivo Rambu
• 1 unit Alumunium Tripod

Brosur

Specifications

ModelB20
Telescope
Length215mm (8.46in.)
Magnification32x
Objective aperture42mm (1.65in.)
Resolving power3″
Field of View
(at 100m/328ft.)		1°20′
(2.3m / 7.5ft.)
Minimum focus0.2m (7.9in.) from end of telescope
0.3m (1ft.) from instrument center
ImageErect
Reticle patternWedge
Stadia constant0
Stadia ratio100
Focusing knob2-speed
Sighting aidPeep sight
Lens hoodRetractable
Accuracy (standard deviation for 1km double run leveling)
Without micrometer0.7mm
(0.03in.)
With micrometer0.5mm
(0.02in.)
Compensator
TypePendulum compensator with magnetic damping system
Setting accuracy0.3″
Working range±15′
Circular level
Sensitivity10′ / 2mm
MirrorPentaprism
Horizontal circle
Diameter103mm (4.1 in.)
Graduations1° / 1gon
General
Horizontal motion driveClampless, endless, double-sided knobs
Water resistanceIPX6 (EC 60529:2001)
Operating temperature-20 to +50°C (-4 to +122°F)
Width130mm (5.12in.)
Length215mm (8.46in.)
Height140mm (5.51in.)
Weight1.85kg (4.1 lb.)
