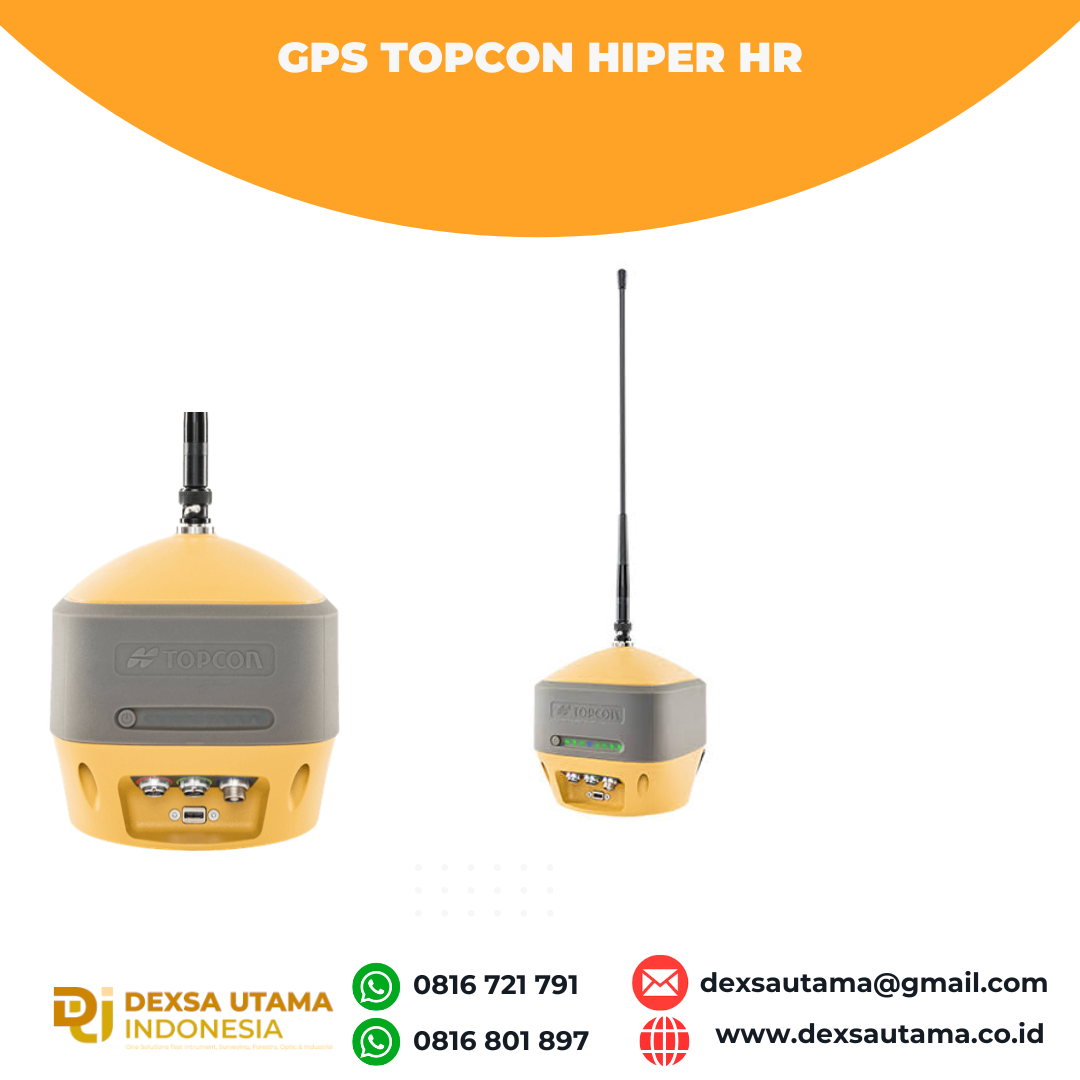

GPS Geodetik RTK Topcon HiPer HR

Harga Belum termasuk PPN
Garansi 12 Bulan

The HiPer HR GNSS receiver overcomes field challenges with a unique blend of technologies. If you’re under tree cover, or can’t get the pole plumb, or need to range widely from your base, or you need superb accuracy, or work in wet conditions, or all of the above, you’ll be free to do your best work.

As part of the Elite Survey Suite hybrid positioning solution, using network correction, mounted to a vehicle or grade checking with Millimeter GPS, or an almost countless number of applications, the HR combines the features to help you succeed.

Next generation Fence Antenna for superior reception
Rugged, waterproof IP67 environmental design
Cellular, LongLink and Radio communications all integrated
452 Universal Tracking channels
Unique 9-axis TILT™ compensation
Internal Wi-Fi and multi-spectrum Bluetooth
Removable, hot-swappable batteries

Topcon Integrated Leveling Technology (TILT™)

By combining a 9-axis inertial measurement unit (IMU), along with a digital compass, the HR can accurately compensate for up to 15º of tilt on the rod.

Now you can measure all the way to a building edge without using an offset. Or stretch to get an otherwise out-of-reach point.

Just as with many other Topcon technologies, TILT™ is designed to solve real-world challenges, so your work gets easier, faster, and better.

Berat	40 kg

Specifications

GNSS Tracking

Number of Channels

452 with patented Universal Tracking Channel Technology

GPS, GLONASS, Galiileo, BeiDou, QZSS, SBAS, L-Band

Satellites Tracked: All in view

Update/Output rate

Up to 20 Hz

Communications

Radio

UHF(410-470MHz)
SS (915 MHz)

LongLink

Yes

I/O Communications

Internal Cell modem
Wi-Fi
Bluetooth®

Memory/Data Storage

Up to 8 GB

Power and Electrical

Power

External power
6to28VDC
2 x Internal batteries
3.7 V, 2900 mAh each

Operation Time

Up to 9 hours with removable batteries

Physical and Environmental

Operating Temperature

-40°C to 65°C

Waterproof

IP67

Drop Test

2 meter pole-drop

Weight

1kg

Accuracy

Static/Fast Static:
H: 3 mm + 0.3 ppm
V: 5 mm + 0.5 ppm

Precision Static:
H: 3 mm + 0.1 ppm
V: 3.5 mm + 0.4 ppm

RTK (L1+L2):
H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm

RTK, TILT Compensated:
H: 1.3 mm/⁰Tilt;
Tilt ≤ 10°
H: 1.8 mm/⁰Tilt;
Tilt > 10°

Maximum recommended angle for tilt compensation is 15°

*See brochure for more information.

**Subject to successful TILT calibration & operating environment free of magnetic disturbances

Brosur

Topcon HiPer HR.

Topcon HiPer HR

Kelengkapan

1x Base

1x Rover

2x OAF, GLONASS L1 L2 Tracking

2x Antenna UHF 425-470 Male BNC

2x Hard Carry Case

1x Bipod

1x Data Kontroller FC-500

1x Bracket for Data Kontroller –

1x Pole Carbon

1x Software Post Procces

1x Tribrach with Adapter –

1x Tripod
