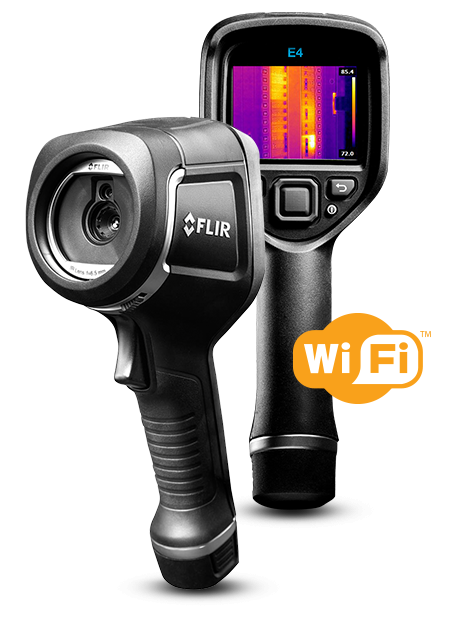

FLIR E4 WiFi
Harga Sudah termasuk PPN 10%
The FLIR E4 with Wi-Fi is an easy-to-use thermal imaging camera for electrical, mechanical, building, and HVAC/R applications. Find hidden problems, take accurate temperature readings, and confirm repairs easily, thanks to the 4,800 (80 x 60) pixel infrared resolution and MSX image enhancements. Then, streamline your work using the built-in Wi-Fi, for uploading and sharing images and data through the FLIR Tools mobile app.
FLIR’s Most Affordable Professional Thermal Imaging
Wi-Fi Connectivity
Upload images and data to the FLIR Tools app over Wi-Fi, for instant sharing and reporting.
Crisp Resolution
The E4 has a crisp, 4,800 pixel detector that is just the right size for your application as well as your budget.
The Power of One Button
A focus-free lens and simple button navigation to on-screen settings makes this camera easy to operate.
MSX® Image Enhancement
The E4 with Wi-Fi features FLIR’s unique MSX that adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.
| Berat | 3 kg |
|---|
Specifications
Overview
- Camera size (L x W x H)
- 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
- Camera weight incl battery
- 0.575 kg (1.27 lb.)
- Detector Type
- Uncooled microbolometer
- Display
- 3.0 in. 320 × 240 color LCD
- List of Contents
- •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Multi Spectral Dynamic Imaging (MSX)
- IR image enhanced with visible camera detail
- Packaging Size
- 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Compliance & Certifications
- Certifications
- UL, CSA, CE, PSE and CCC
Connections & Communications
- AC Operation
- AC adapter, 90–260 VAC input, 5 VDC output to camera
- Interface
- USB Micro: Data transfer to and from PC and Mac device
- WiFi
- •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Environmental
- EMC
- •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
- Emissivity table/correction
- Emissivity table of predefined materials/variable from 0.1 to 1.0
- Encapsulation/Drop
- IP 54 (IEC 60529)/2m (6.6 ft.)
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range
- –15°C to 50°C (5°F to 122°F)
- Radio Spectrum
- •ETSI EN 300 328 •FCC 47 CSR Part 15 •RSS-247 Issue 2
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 70°C (–40°F to 158°F)
- Vibration
- 2 g (IEC 60068-2-6)
Imaging & Optical
- Color
- Black and gray
- Color Palettes
- Black & white, iron, and rainbow
- Digital Camera Resolution/FOV
- 640 × 480/55° × 43°
- Field of view (FOV)
- 45° × 34°
- f-number
- 1.5
- Focus
- Focus free
- Image Adjustment
- Automatic adjust/lock image
- Image Frequency
- 9 Hz
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- IR Resolution
- 80 × 60 pixels
- Minimum Focus Distance
- 0.5 m (1.6 ft.)
- Picture-in-Picture
- IR area on visual image
- Spatial resolution (IFOV)
- 10.3 mrad
- Spectral Range
- 7.5–13 µm
- Thermal Sensitivity/NETD
- <0.15°C (0.27°F) / <150 mK
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Area
- Box with max./min.
- Isotherm
- Above/below/interval
- Object Temperature Range
- –20°C to 250°C (–4°F to 482°F)
- Reflected apparent temperature correction
- Automatic, based on input of reflected temperature
- Set-up Commands
- Local adaptation of units, language, date and time formats
- Spotmeter and Area
- Center spot; box with min./max.
Power
- Battery type & operating time
- Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
- Charging system
- Battery is charged inside the camera or in specific charger.
- Charging Time
- 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management
- Automatic shut-down
Storage Media
- File Formats
- Standard JPEG, 14-bit measurement data included
