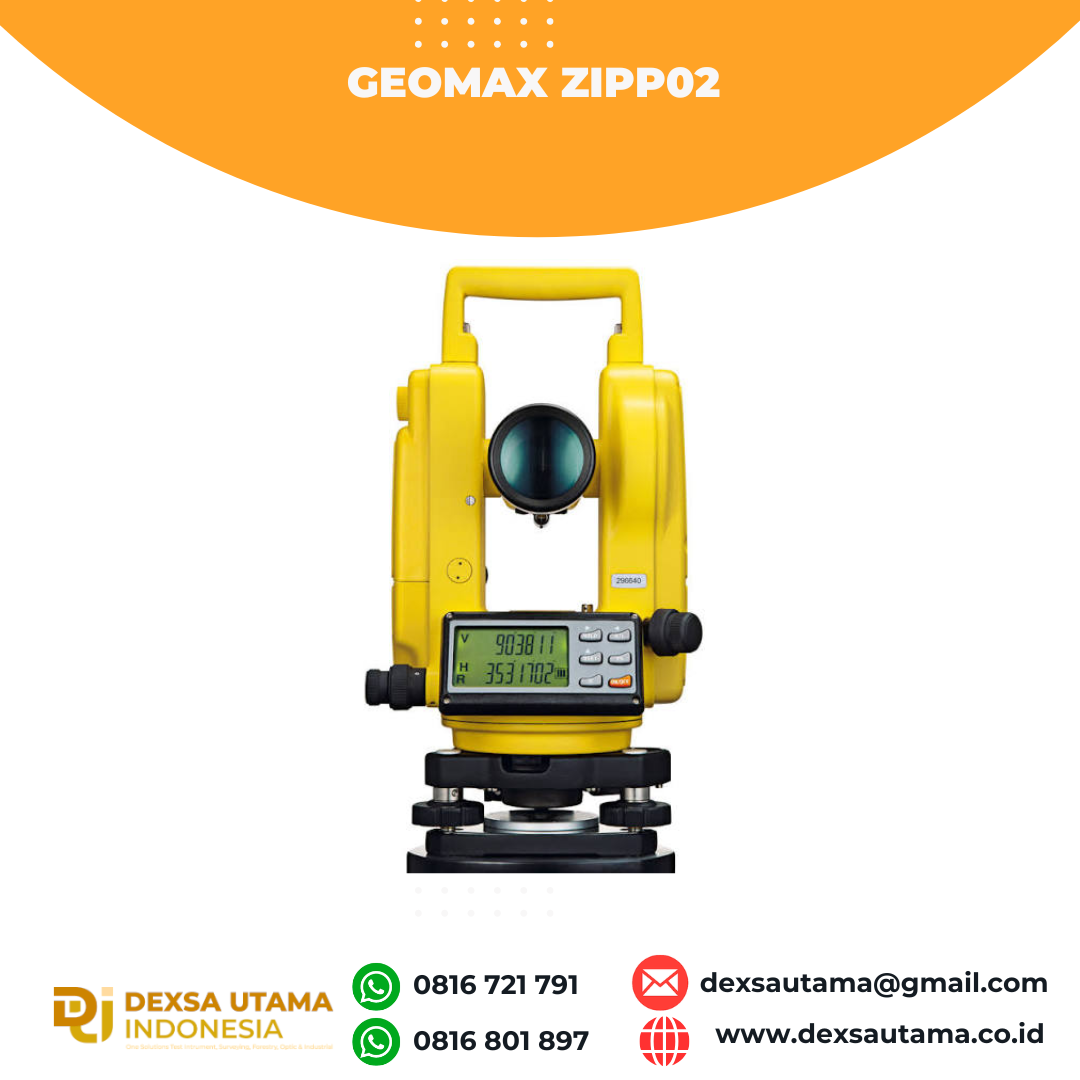

Name: Geomax ZIPP02
SKU: ZIPP02
Availability: InStock

With vertical compensation and 2” accuracy the Zipp02 provides you with the precision required for your most demanding jobs
Various display modes, hold and set zero for horizontal angle, a variation of measurement units, simple distance measurement via stadia lines make an easy operation with only six keys
Visiblelaser plummet enables you to set up over a point faster and easier than ever.

Berat	12 kg

Kelengkapan

Kelengkapan Dalam Kardus :
• 1 unit Theodolite Geomax Zipp02 & 1 Unit Charger, 1 Unit Baterai
• 1 unit Carry Case
• 1 unit User Manual
• 1 Lembar Sertifikat Kalibrasi
• 1 Lembar Garansi 1tahun

Kelengkapan Assesoris :
• 1 unit Tripod
• 1 unit Rambu Ukur

Specifications

Angle measurements (Hz, V)

Precision: 2″
Display resolution: 1″ or 5″
Display units: DEG (360° 00’ 00″), GON (400), MIL (6400), V / %

Telescope

Magnification: 30x
Objective aperture: 45 mm (1.7 in)
Minimum focusing distance: 1.35 m (4.43 ft)
Stadia multiplication factor/constant: 100/0

Compensator

System: Automatic vertical compensator, User set On/Off
Working Range: ± 3’

Operation

Display: Double side large character back-lit LCD
Keys: 6 one touch button functions

Laser plummet

Type: Visible laser point
Accuracy: 1.5 mm at 1.5 m instrument height

Other Specifications:

IP54 Dust and water resistant
Weight including battery and tribrach: 4.5 kg (9.9 lb)
Type of battery: Rechargeable NiMH, replacement alkaline battery pack
Approximate Battery Life without Laser plummet: 36h

Brosure

Geomax ZIPP02
