• Rugged & Professional Screen, Housing & Probes
• Several Probe Options – Single, Dual, or Triple Lens, & Auto Focus
• LED Ring & Work Lights Illuminate the Darkest Areas
• 3500 mAh Lithium-ion Battery with Up to 6 hours of Use Time

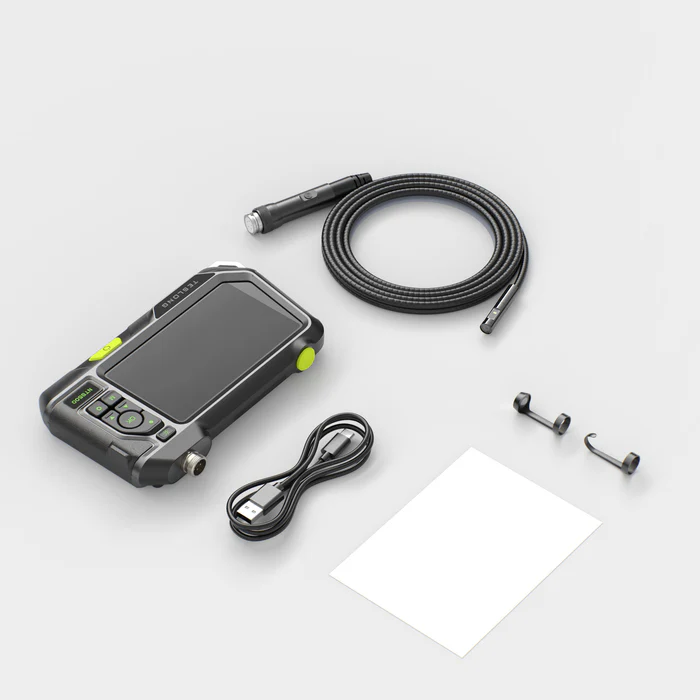

• Includes a Durable Storage Box with Accessories

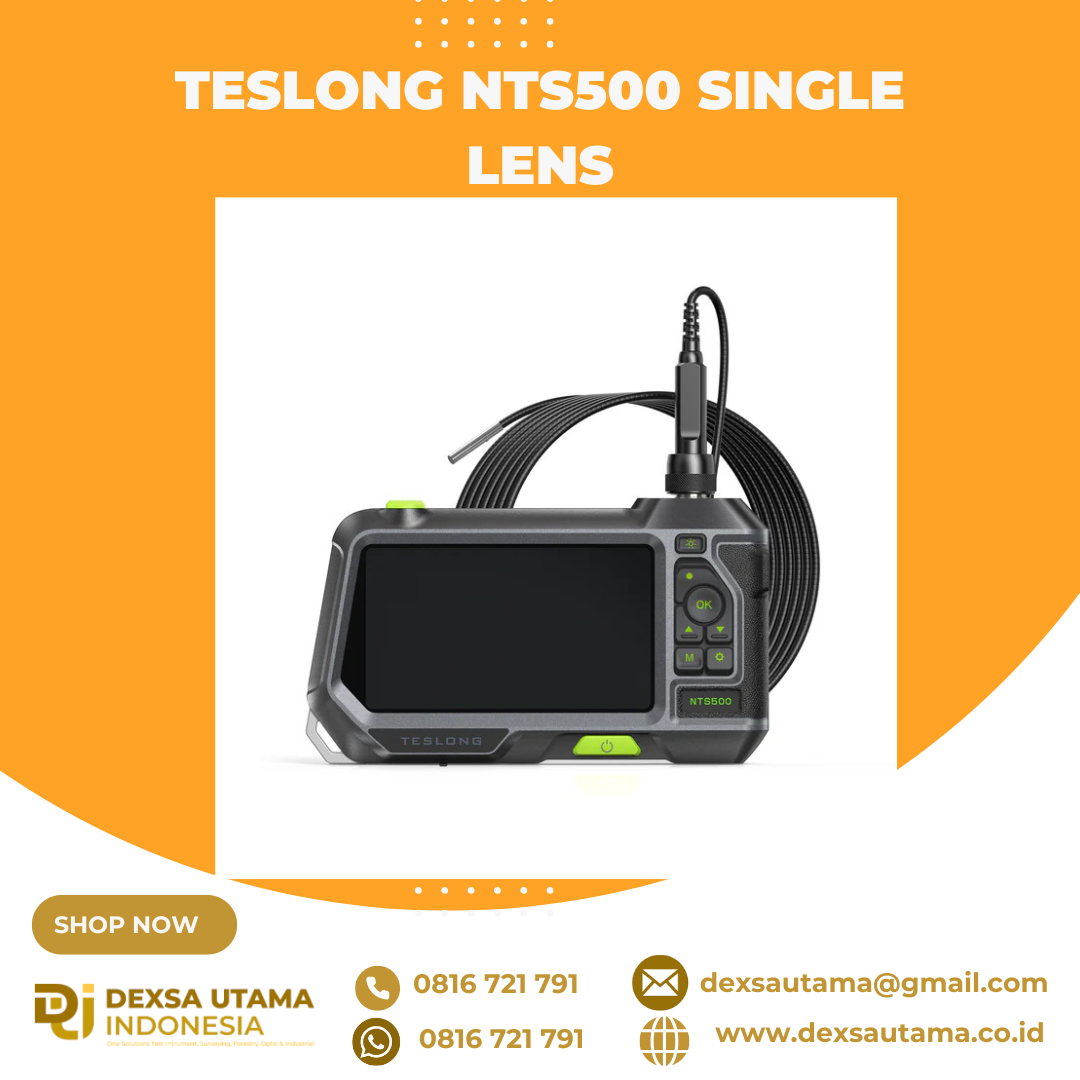

MODULAR INSPECTION CAMERA WITH MULTIPLE LENS OPTIONS
SINGLE-LENS ENDOSCOPE CAMERAS
This inspection camera is compatible with a range of camera probes, so you can choose which probe you want when you make your purchase. Each camera probe features a metal cable housing with durable rubber coating that holds its shape well for easy handling. The flexible, single-lens, camera cables range in diameter from .15in (3.9mm) to 0.29in (7.6mm) and come in three lengths of 3.2, 9.8, or 16 feet (1, 3, or 5 meters). The lenses include adjustable LED ring lights to give the camera a perfect view of the darkest inspection areas.
There are three single-lens camera options with larger diameters having improved image quality. The NTS500 is modular so it is easy to change to a different type of camera probe should your needs change.

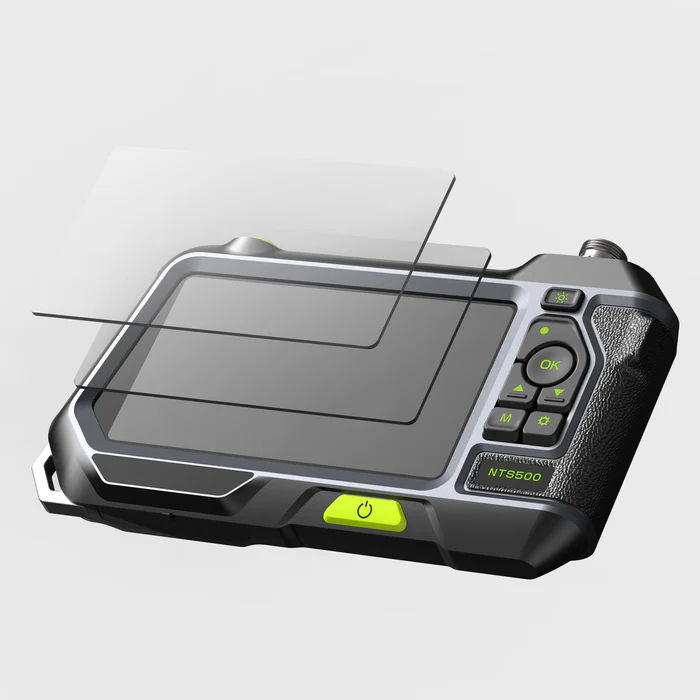

THE LARGE 5-INCH SCREEN SHOWS THE BEST INSPECTION DETAIL
• 5-Inch 720P IPS Screen
• Scratch-Resistant Tempered Glass
• 3500mAh Lithium-ion Battery
• Built-in 32GB Memory Card

0.21-INCH DIAMETER PROBE
• 1.0 megapixel HD module
• IP67 waterproof rating
• Flexible camera probe is easy to form and control
• 6 LED lights
– | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
---|---|---|---|---|---|---|---|---|
Model Number | NTS500 | NTS300 | NTS430 | TD500 | NTS500B | MS450-NTC | TSMS450 | WF200 |
Use | Professional | Professional | Professional | Professional | Home / Hobbyist | Home / Hobbyist | Home / Hobbyist | Home / Hobbyist |
Type | Tablet | Trigger Grip | Trigger Grip | Articulating | Tablet | Tablet | Telescopic w/Tablet | Trigger Grip |
Screen Size | 5-inch | 5-inch | 4.3-inch | 5-inch | 5-inch | 4.5-inch | 4.5-inch | N/A |
Screen Resolution | 1280×720 px | 854×480 px | 854×480 px | 1280×720 px | 854×480 px | 854×480 px | 854×480 px | N/A |
Screen Panel Type | IPS | IPS | IPS | IPS | IPS | IPS | IPS | N/A |
Tempered Glass on Screen | √ | √ | √ | √ | √ | √ | √ | N/A |
Interchangeable Camera | √ | √ | √ | x | √ | √ | √ | √ |
Probe Type | Reinforced metal with thread-on connector | Reinforced metal with thread-on connector | Reinforced metal with thread-on connector | Bendable metal with articulating tip | Bendable metal with USB-C connector | Bendable metal with USB-C Connector | Bendable metal with USB-C Connector | Reinforced metal with thread-on connector |
IP Rating | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | Camera probe only IP67 | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | Camera probe only IP67 |
Image Capturing Resolution | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1280×720 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) |
Video Recording Resolution | 1280×720 (AVI) | 1280×720 (AVI) | 1920×1080 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1920×1080 (AVI) |
Memory Card | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | None |
Built-in Battery | 3500mAh lithium-ion battery | 5000mAh lithium-ion battery | 3000mAh lithium-ion battery | 3000mAh lithium-ion battery | 3500mAh lithium-ion battery | 2500mAh lithium-ion battery | 2500mAh lithium-ion battery | 2000mAh lithium-ion battery |
Battery Working Hours | 4.5 hours | 4 hours | 4.5 hours | 4 hours | 5 hours | 4 hours | 4 hours | 4 hours |
Flash Light | √ | √ | √ | x | √ | x | x | √ |
Microphone & Speaker | √ | √ | √ | √ | √ | √ | √ | x |
Wi-Fi | x | x | x | √ | x | x | x | √ |
Split-Screen View | x | x | √ (8mm probe) | x | x | x | x | √ (dual lens) |
CAMERA PROBE COMPARISON – PROFESSIONAL
Model Number | CAM3901/03 | CAM5501/03 | CAM7005 | CAM7601/03/05 | CAM12501/03 | CAM55D01/03 | CAM80D01/03/05 | CAM79T01/03/05 | CAMD8RL1/L3/L5 |
---|---|---|---|---|---|---|---|---|---|
Use | Professional | Professional | Home DIY | Professional | Professional | Professional | Professional | Professional | Professional |
How Many Lenses | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 2 |
Probe Diameter | 0.15-inch (3.9mm) | 0.21-inch (5.5mm) | 0.28-inch (7mm) | 0.29-inch (7.6mm) | 0.49-inch (12.5mm) | 0.21-inch (5.5mm) | 0.31-inch (8mm) | 0.31-inch (7.9mm) | 0.31-inch (9.5mm) |
Probe Lengths | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) | 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) | 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) |
Auto or Fixed Focus? | Fixed | Fixed | Fixed | Fixed | Auto Focus | Fixed | Fixed | Fixed | Fixed |
Camera Resolution | 1280×720 px | 1280×720 px | 1920×1080 px | 1280×720 px | 1280×720 px on Monitor 1920×1080 px and 2592×1944 px only available when connect to PC or Mac, an adapter cable is required | 1280×720 px | 1280×720 px | 1280×720 px | 1280×720 px |
Main Lens Focal Distance | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-inch to infinity (3cm-infinity) | 1.18-2.36 inches (3-6cm) | 1.18-3.9 inches (3-10cm) | 1.2-4.0 inches (3-10cm) | 1.18-3.15 inches (3-8cm) |
View Angle | 70º | 70º | 80º | 70º | 70º | 70º | 70º | 70º | 70º |
Side Lens Resolution | X | X | X | X | X | 1280×720 px | 1280×720 px | 1280×720 px | 1280×720 px |
Side Lens Focal Distance | X | X | X | X | X | 2cm | 0.78-1.96 inches (2-5cm) | Lens B: 0.78-2.36 inches (2-6cm) Lens C: 0.39-0.98 inches (1-2.5cm) | 0.78-1.96 inches (2-5cm) |
Side Lens View Angle | X | X | X | X | X | 70º | 70º | 70º | 70º |
Special Features | NA | NA | NA | NA | NA | NA | NA | NA | Rotating Side Lens |
Connector Type | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on |
Material of the Probe | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal |
