Topcon RL-SV2S Dual Grade Laser
Harga Sudah termasuk PPN 10%
- Range of 2,600 feet with laser receiver
- Accuracy of ±10 arc seconds in both axes
- Self-Leveling within ±5 degrees
- Dual grade of ±5%
- Height-of-Instrument alert
- Adjustable rotation speed
- IP66 dustproof & powerful water jet resistant
- 5/8-11 tripod thread
| Berat | 25 kg |
|---|
Overview

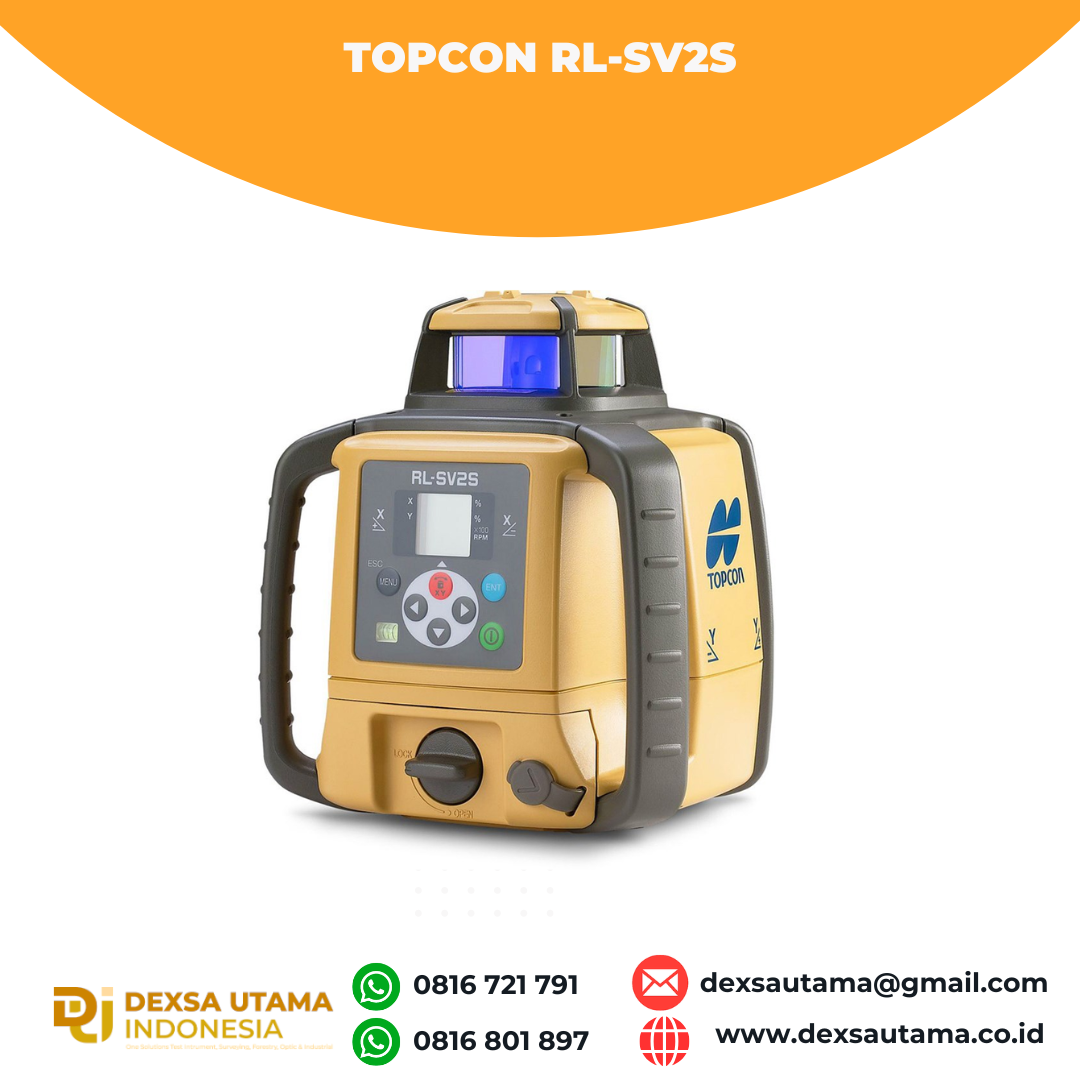

Perfect for creating slopes and layout applications, the Topcon RL-SV2S Dual Grade Laser is ideal for grade checking while excavating, pipe laying, landscaping, foundations, retaining walls, drop ceilings, and more. Self-leveling within ±5 degrees, this dual grade laser offers an accuracy of ±10 arc seconds in both axes. It comes with an operating range of up to 2,600 feet with a laser receiver and features a dual grade of ±5 percent.
The Topcon RL-SV2S comes with an adjustable rotation speed of 300 or 600 rotations per minute. For a cost-effective and time-saving leveling, it has a height-of-instrument alert feature that notifies the construction professional that the device has been moved. Also, it has an operating temperature of 4°F to 122°F that can withstand any weather changes or climate conditions.
With an IP66 rating, this Topcon dual grade laser is dustproof and water-resistant. Using dry-cell batteries, this self-leveling laser operates up to 120 hours while it runs up to 65 hours with the BT-74Q rechargeable battery. In addition, it includes a 5/8-11 tripod thread which is widely compatible with most tripod brands.
Configuration Options
The Topcon RL SV2S Dual Grade Laser comes in two packages with different batteries and laser receivers. All are supported by a five-year warranty. Choose your preference from the drop-down menu above.
- 313990752: Topcon RL-SV2S Dual Grade Laser with BT-74Q rechargeable battery and LS-80L Laser Receiver
- 313990772: Topcon RL-SV2S Dual Grade Laser with BT-74Q rechargeable battery and LS-100D Laser Receiver
Features
- Choice of receiver and battery
- Range of 2,600 feet with laser receiver
- Accuracy of ±10 arc seconds in both axes
- Self-Leveling within ±5 degrees
- Dual grade of ±5%
- Height-of-Instrument alert
- Adjustable rotation speed
- IP66 dustproof and water resistant
- Up to 120 hours of battery life with dry-cell batteries
- Up to 65 hours battery life with rechargeable NiMH batteries
- Operating temperature of 4°F to 122°F (-20°C to 50°C)
- 5/8-11 tripod thread
Specifications
Laser | |
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 3R |
| Direction | Horizontal and vertical |
| Visibility | Visible |
Range | |
| Interior | N/A |
| Exterior | Up to 2,624 feet (800 m) |
| Self Leveling | ±5 degrees |
| Remote | N/A |
Battery/Power | |
| Battery Life with Rechargeable Battery Pack | Up to 65 hours |
| Battery Life with Alkaline Batteries | Up to 120 hours |
| Power Source | Rechargeable NiMH or D-cell |
| Battery Life Alert | Yes |
Features | |
| Automatic Shut-Off | N/A |
| Display | Backlit, graphic LCD |
| Drop Damage Protection | N/A |
| Bump Sensor (H.I./Out of Position Alert) | Yes |
| Protection Class | IP66 dustproof and powerful water jet resistant |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Removable Laser Cage (for exact beam spotting) | N/A |
| Detecting Indicator | N/A |
| Dual Handles | Yes |
| Built-in Bubble Vial | Yes |
| Adjustable Rotating Speed | 300, 600 RPM |
| One-Touch Commands | N/A |
| Wall Mount Bracket | N/A |
| Plumb Point | N/A |
General | |
| Maximum Power Output | N/A |
| Weight | 5.95 lbs (2.7 kg) |
| Dimensions | 7.0″ L × 7.7″ W × 8.5″ H |
| Warranty | 5-year |
| Remote Control Operating Distance | Up to 328 feet (99.97 m) |
Extra Technology | |
| Remote Control | RC-60 (Optional) |
| Detector/Receiver | LS-80L or LS-100D |
| Smart Scan® | N/A |
| Smart Slope® | N/A |
Accuracy | |
| Horizontal | Horizontal ±10 arc seconds |
| Vertical | N/A |
Temperature | |
| Storage | -22 to 140 °F (-30 to 60 °C) |
| Operating | -4 to 122 °F (-20 to 50 °C) |
Charger | |
| Input | N/A |
| Output | N/A |
| Charging Time | Up to13 hours |
Functions | |
| Slope Match | N/A |
| Grade Operation | Automatic |
| Automatic Leveling | Yes |
| Beam Operating Modes | Beam masking |
| Scanning Modes | N/A |
Applications | |
| Checking/Setting Elevations | Yes |
| Transferring Points from Floor to Ceiling | N/A |
| Machine Control of Excavators, Graders, Dozers or Similar Equipment | N/A |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Installation/Leveling Ceiling Grids | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | N/A |
| Concrete Forms, Footings and Foundations | Yes |
| Plumb Reference | N/A |
| Checking Elevations of Sub-Base and Sub-Grade | Yes |
| Short-Run Vertical Alignment | Yes |
| Checking Building Square & Area | N/A |
| Estimating Cut & Fill | Yes |
| Matching Existing Slope & Grade | Yes |
| Locating Finished Floor Levels | Yes |
Grade | |
| Type | Dual |
| Percentage | ±15% |
Kelengakapan
- Topcon RL-SV2S Dual Grade Laser
- HC-60 remote control
- Receiver mounting bracket
- Receiver rod clamp
- Hard carrying case
- Batteries
- User manual
- Alumunium Tripod
• 1 Lembar Sertifikat Kalibrasi
• 1 Lembar Garansi 1tahun
