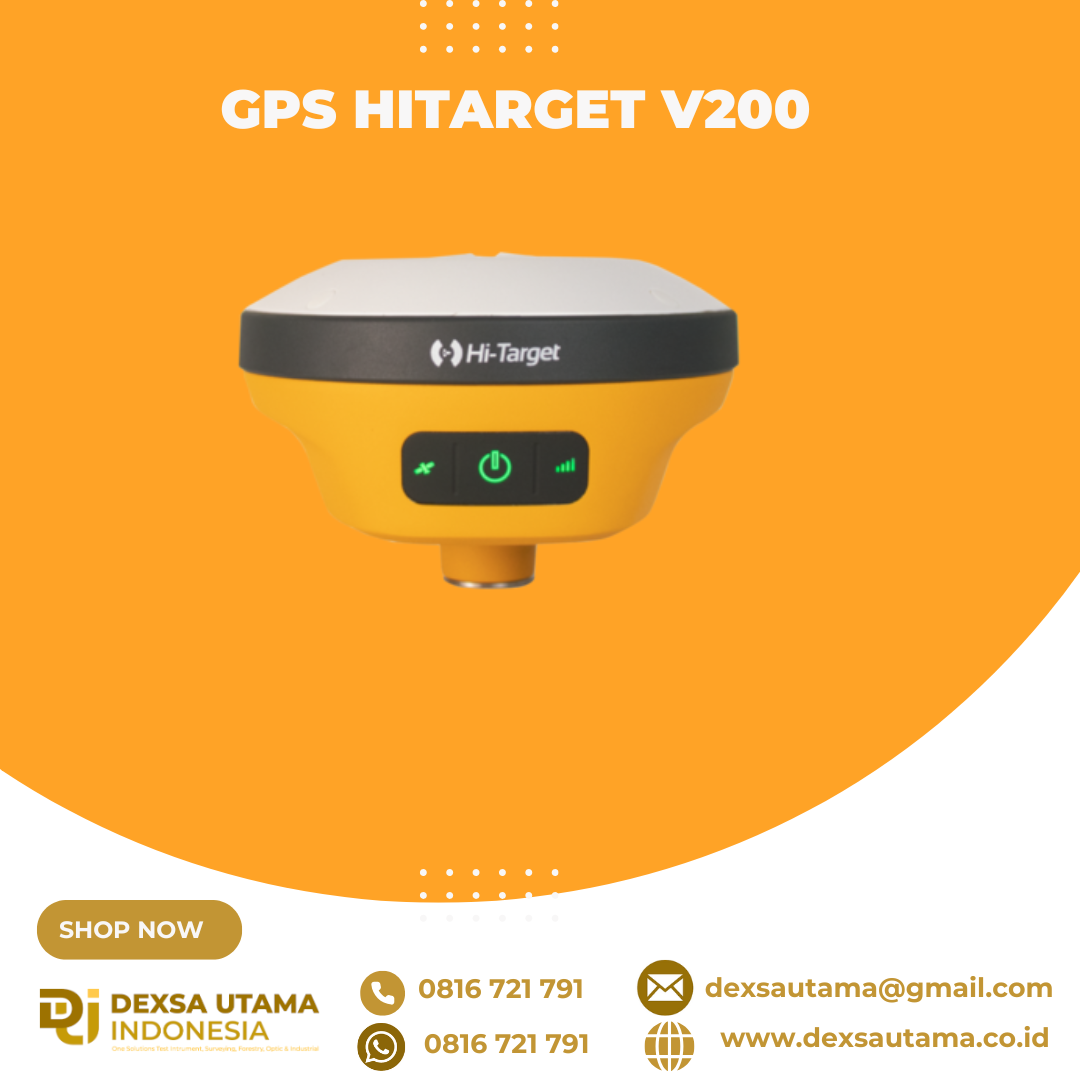

GPS Hitarget V200

Hi-Target V200 adalah

penerima GNSS RTK (Global Navigation Satellite System Real-Time Kinematic) geodetik yang ringkas dan ringan, dirancang untuk survei dan pemetaan dengan akurasi tinggi. Dengan menggabungkan teknologi multi-konstelasi dan fitur kompensasi kemiringan, perangkat ini menawarkan solusi efisien dan portabel untuk pekerjaan lapangan di berbagai kondisi lingkungan

igher Accuracy and Precision

Equipped with the High-Performance Patch Antenna, enhances the low elevation angle tracking capabilities and keeps it maintaining a high gain for higher elevation satellites while tracking low-elevation satellites.

Spesifikasi

GNSS SIGNAL
- Channels: 1408
- GPS: L1 / L2 / L5 / L2C
- BDS: B1 / B2 / B3 / B1C / B2a
- GLONASS: L1/L2/L3
- Galileo: E1 / E5 / AltBOC / E5a / E5b / E6
- SBAS: L1 / L5
- QZSS: L1 / L2 / L5 / L6
- IRNSS: L5

POSITIONING PERFORMANCE
- High Precision static GNSS Surveying
  - Horizontal : 2.5mm + 0.1ppm RMS
  - Vertical: 3.5mm + 0.4ppm RMS
- Static and Fast Static
  - Horizontal: 2.5mm + 0.5ppm RMS
  - Vertical: 5mm + 0.5ppm RMS
- Post Processing Kinematic (PPK / Stop & Go)
  - Horizontal: 8mm + 1ppm RMS
  - Vertical: 15mm + 1ppm RMS
  - Initialization time: Typically 10 min for base and 5 min for rover
  - Initialization reliability: Typically > 99.9%
- Code Differential GNSS Positioning
  - Horizontal: ±0.25m + 1ppm RMS
  - Vertical: ±0.5m + 1 ppm RMS
  - SBAS: 0.5m (H), 0.85m (V)
- Real Time Kinematic (RTK)
  - Horizontal: 8mm+1ppm RMS
  - Vertical: 15mm+1ppm RMS
  - Initialization time: Typically <10s
  - Initialization reliability: Typically > 99.9%
- Time to First Fix
  - Cold Start: <45 s
  - Hot Start: <30 s
  - Signal re-acquisition: <2 s
- Hi-Fix
  - Horizontal: RTK+10mm / minute RMS
  - Vertical: RTK+20mm / minute RMS
- Tilt Survey Performance
  - Additional horizontal pole-tilt uncertainty typically less than 8mm +0.7mm / °tilt (2.5cm accuracy in the inclination of 30°)

COMMUNICATION
- Communication
  - Bluetooth: 4.2 / 2.1+EDR, 2.4GHz
  - WiFi: Frequency 2.4GHz, Supports 802.11a/b/g/n
- Internal UHF Radio
  - Frequency: 410-470MHz
  - Channel: 116 (16 scalable)
  - Transmitting power: 0.5W/ 1W / 2W adjustable
  - Support multi-communication protocols:
    - Hi-Target
    - TRIMTALK450S
    - TRIMMARK III
    - TRANSEOT
    - SATEL-3AS
    - etc.

PHYSICAL
- Internal Battery
  - Internal 7.4V / 6800mAh lithium-ion rechargeable battery
  - RTK Rover (network) for 12 hours
  - Static: up to 15 hours
- External Power
  - Power Consumption: 4.2W
  - Dimension (W x H): 132mm x 67mm
  - Charging: using standard smartphone chargers or external power banks
  - Weight: ≤0.8kg (include battery)
  - Data Storage: 8GB ROM internal storage

CONTROL PANEL
- LED Lamp:
  - Satellite
  - Signal
  - Power
- Physical button: 1

ENVIRONMENT
- Water / Dustproof: IP67
- Shock and vibration: Designed to survive a 2m natural fall onto concrete
- Humidity: 100%, condensing
- Operation Temperature: -30°C~+70°C
- Storage Temperature: -40°C~+80°C

I/O INTERFACE
- 1x USB port, type C
- 1x SMA antenna connector

DATA FORMATS
- Output rate: 1Hz-20Hz.
- Static data format: GNS, Rinex
- Network model: VRS, FKP, MAC; supports NTRIP protocol
- CMR& RTCM: CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
- Navigation outputs ASCII: NMEA-0183
