Versatile Performance
Better things in smaller packages!

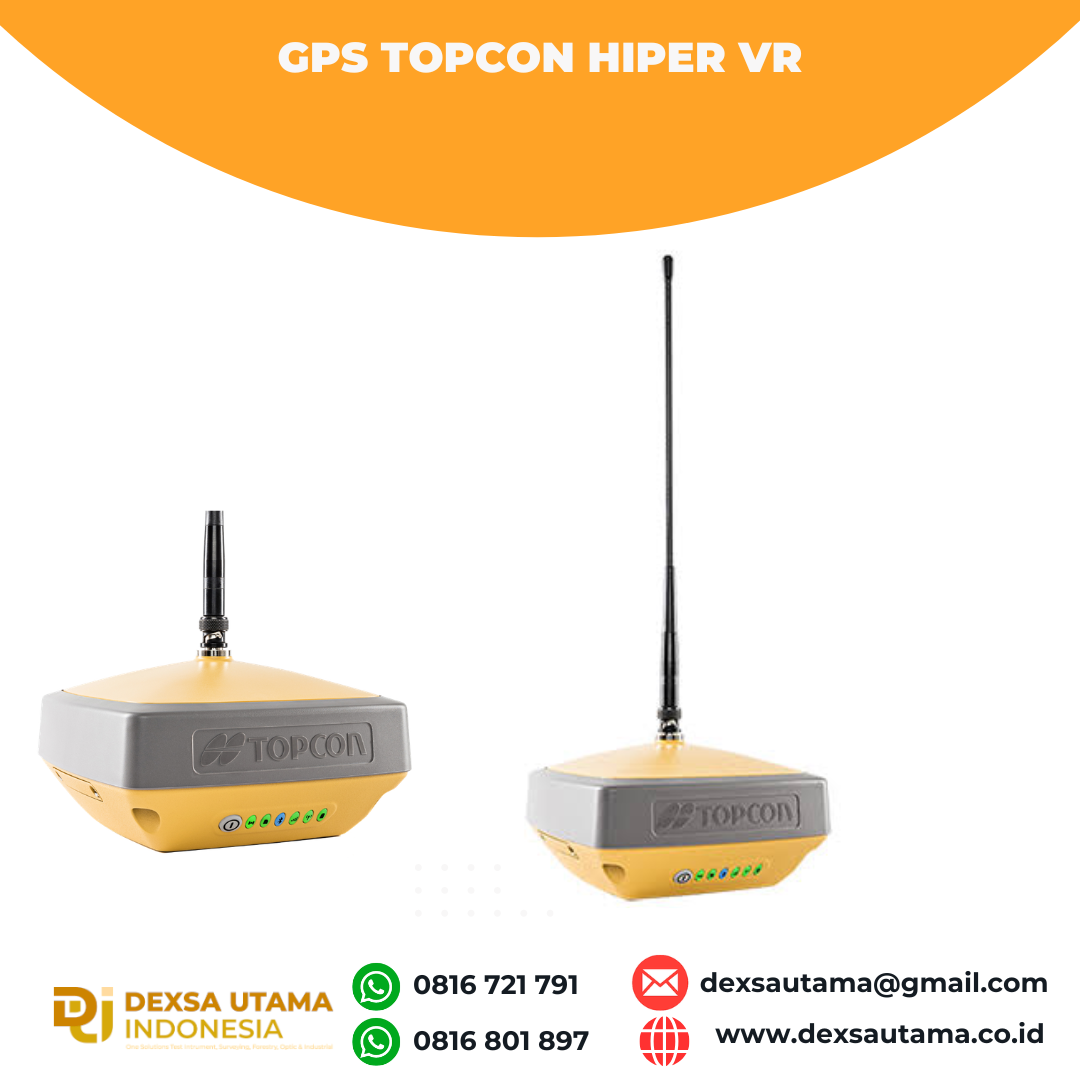

The HiPer VR* is compact, light and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. Using Topcon’s advanced GNSS chipset with Universal Tracking Channels Technology, the HiPer VR automatically tracks every satellite signal above – now and into the future.
All signals, all satellites and all constellations — in a compact, rugged design, with an integrated IMU and eCompass.
The HiPer VR is a complete solution and versatile in many ways. It can be used for static or kinematic GNSS post-processed surveys, as a network RTK rover with the FC-5000’s internal 4G/LTE cellular modem, as a UHF/FH/Longlink jobsite RTK rover, and also in Topcon’s patented Hybrid Positioning workflow.
Top features include:
- Universal tracking technology for all satellites and constellations (GPS, GLONASS, Galileo, Beidou, IRNSS, QZSS, SBAS) covering all modernized signals
- Field tested, field ready IP67 design
- Compact form factor ideal for Millimeter GPS and Hybrid Positioning
- Revolutionary 9-axis IMU and ultra-compact 3-axis eCompass
- Integrated 400 MHz UHF Tx/Rx Radio Modem
- Integrated License free 900 MHz Radio Modem, FH915 protocol
| Berat | 40 kg |
|---|
Specifications
GNSS Tracking
Number of Channels
226 with Topcon’s patented Universal Tracking Channels™ technology.
Signals Tracked*
GPS Signals:
L1 C/A, L1C* L2C, L2P(Y), L5
L1 C/A, L1C* L2C, L2P(Y), L5
**
GLONASS:
L1 C/A, L1P, L2C/A, L2P, L3C*
L1 C/A, L1P, L2C/A, L2P, L3C*
Galileo:
E1/E5a/E5b/Alt-BOC
E1/E5a/E5b/Alt-BOC
BeiDou/BDS:
B1, B2
B1, B2
IRNSS:
L5
L5
***
SBAS:
WAAS, EGNOS, MSAS, GAGAN (L1/L5§)
WAAS, EGNOS, MSAS, GAGAN (L1/L5§)
L-band:
TopNET Global D & C Corrections services
TopNET Global D & C Corrections services
QZSS:
L1 C/A, L1C, L1-SAIF, L2C, L5
L1 C/A, L1C, L1-SAIF, L2C, L5
*L1C when signal available.
**L3C when signal available.
***L5 when signal available.
Accuracy
Fast Static (L1+L2)
H: 3 mm + 0.4 ppm
V: 5 mm + 0.5 ppm
V: 5 mm + 0.5 ppm
RTK (L1+L2)
H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm
V: 10 mm + 0.8 ppm
Compensator Tilt Sensor*
H: 1.3 mm/°Tilt;
Tilt ≤ 10°
H: 1.8 mm/°Tilt;
Tilt > 10°
Tilt ≤ 10°
H: 1.8 mm/°Tilt;
Tilt > 10°
DGPS
0.25 m HRMS
*Maximum recommended angle for tilt compensation is 15°.**
Power and Electrical
Operation Time
RX mode – 10hr
TX mode 1W – 6hr
TX mode 1W – 6hr
General
Radio
425-470 MHz UHF radio
Max Transmit Power: 1W
Range: 5-7 km typical; 15 km
Max Transmit Power: 1W
Range: 5-7 km typical; 15 km
Memory
Internal Non-removable 8 GB SDHC
Physical and Environmental
Ingress Protection
IP67
Operating Temperature
-40ºC to 65ºC
Humidity
100%, condensing
Drop Test
1.0 m drop to concrete. 2.0 m pole drop to concrete.
Dimensions
150 x 100 x 150 mm
(w x h x d)
(w x h x d)
Weight
<1.15 kg
Brosur
Kelengkapan
1x Base
1x Rover
2x OAF, GLONASS L1 L2 Tracking
2x Antenna UHF 425-470 Male BNC
2x Hard Carry Case
1x Bipod
1x Data Kontroller FC-500
1x Bracket for Data Kontroller –
1x Pole Carbon
1x Software Post Procces
1x Tribrach with Adapter –
1x Tripod
