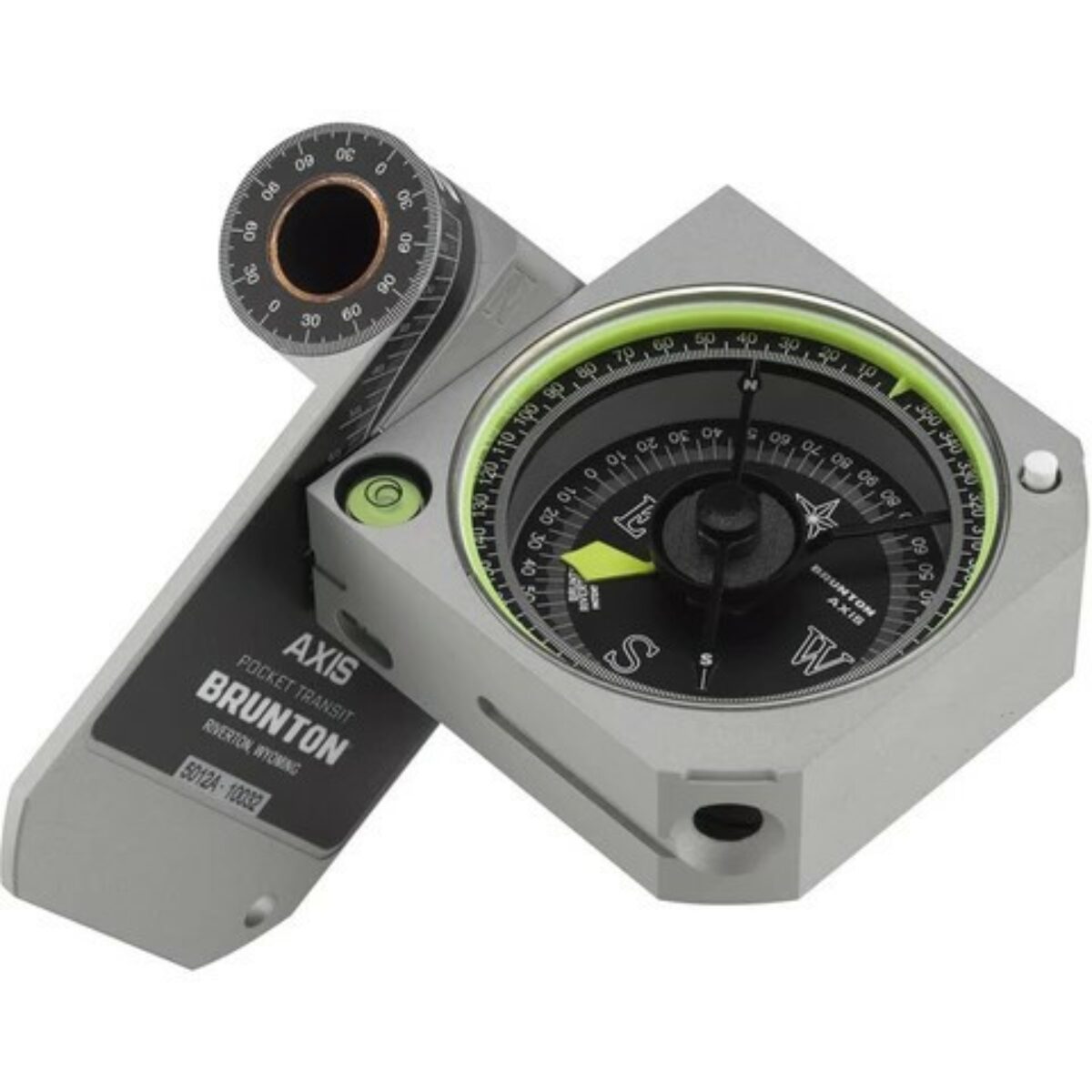

Kompas Brunton 5012

FEATURES

• Unique dual axis hollow hinge allows for easy and intuitive measurements of any line or plane.

• The lid rotates 360˚ around both axes, making measurements possible for any surface including overhangs. The lid can extend or create the measurement surface itself.

• The default orientation of compass North makes this the only transit in the world that can measure strike & dip simultaneously. A simple rotation of the azimuth ring also allows simultaneous measurement of dip angle & dip direction if that is preferred.

• A secondary axis of rotation and lid protractor allows simultaneous measurement of trend & plunge.

• The hollow hinge/sighting tube allows for direct horizontal and vertical sighting measurements.

• Hinge dial enables dip angle measurements and also serves as a versatile protractor.

• Excellent contact and sighting measurement capabilities.

• Dual long-level bubbles allow the user to level the compass from the sides and bottom.

• The flat bottom allows for easier dip angle and dip azimuth measurements at low angles.

• The needle can be set to lock automatically, allowing for accurate readings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world .

• Induction dampening makes for a quick-settling needle.

• A sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

• Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.

• Each comes with a protective leather case, perfect for carrying your Brunton in the field.

• Made in the USA in Riverton, Wyoming.

TECH SPECS

• MEASUREMENT STYLE: unique, simultaneous methods
• DIMENSIONS: 3.9 x 2.8 x 1.2 in | 10 x 7 x 3 cm
• WEIGHT: 12.1 oz | 341.6 g
• AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• HINGE DIAL: 2˚ graduations w/ ± 1˚ accuracy
• PLUMB CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
• LID PROTRACTOR: 1˚ graduations w/ ± 0.5˚ accuracy
• DECLINATION ADJUSTMENT: ± 180˚
