• Two-Way 210° Articulation on A 5.08-foot Probe
• Probe Is Available in 2 Diameters – 0.25 or 0.33 Inch
• 720P CMOS Image Sensor for Excellent Detail
• LED Ring Lights Illuminate the Darkest Areas
• A 5-inch IPS LCD Screen Powered by a 3000 mAh Lithium Battery
• 32GB Micro SD Card Included to Store Photos & Video
TESLONG TD500 ARTICULATING ENDOSCOPE INSPECTION CAMERA

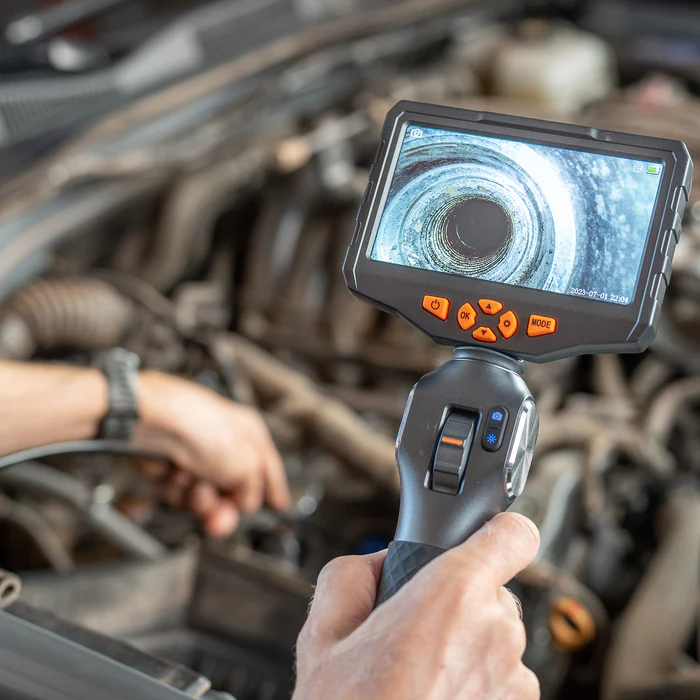

A portable, handheld, multi-function inspection system. With its articulating camera, the probe can be controlled by hand to look in different directions. This is perfect for many applications, such as inspecting engine cylinders, inside airplane wings, behind instrument panels, and inside brake systems.
The inspection probes are available in two different diameters – 8.5mm (0.33in) or 6.36mm (0.25in). The 8.5mm variant is stiffer and holds its shape better while the 6.36mm variant is much more flexible and easier to push through tight areas.

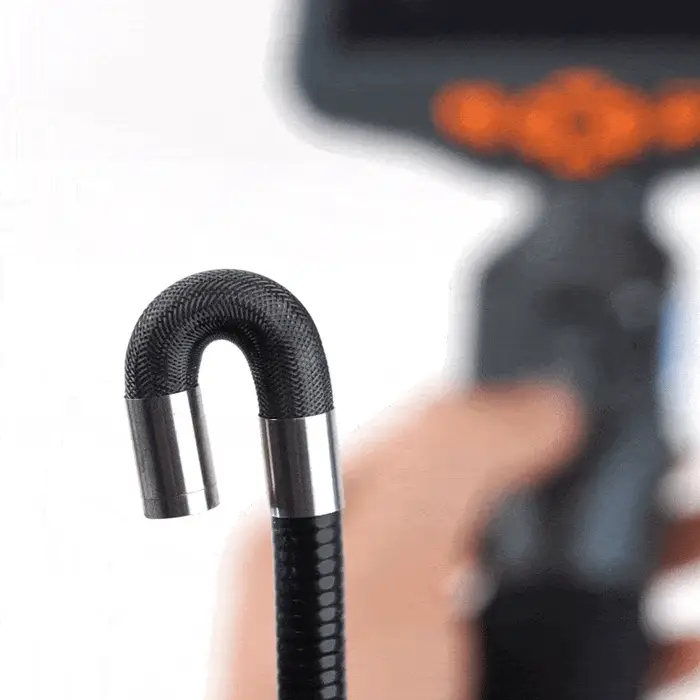

TWO-WAY 210° ARTICULATION
Responsive articulation enables you to control the scope’s tip with precise movement so that you can navigate to your target area quickly and stay in position with locking capability.
DESIGNED FOR PROFESSIONALS
Built with high-quality, durable materials. A built-in 3000mAh rechargeable battery, works right out of the box. No need to download any driver software or apps.
WI-FI REMOTE VIEWING; TAKE PICTURES & RECORD VIDEOS
Wi-Fi connection to smartphones and tablets is convenient for teamwork.
720P HD – Comes with 1.0MP CMOS Sensor.
The LED ring light, ensures clear images and restore details under dark conditions.
A built-in 32GB microSD card supports JPG image and AVI video recording.
A built-in microphone can record voice when shooting video, which is convenient for reviewing problems later.
| – |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|
| Model Number | NTS500 | NTS300 | NTS430 | TD500 | NTS500B | MS450-NTC | TSMS450 | WF200 |
| Use | Professional | Professional | Professional | Professional | Home / Hobbyist | Home / Hobbyist | Home / Hobbyist | Home / Hobbyist |
| Type | Tablet | Trigger Grip | Trigger Grip | Articulating | Tablet | Tablet | Telescopic w/Tablet | Trigger Grip |
| Screen Size | 5-inch | 5-inch | 4.3-inch | 5-inch | 5-inch | 4.5-inch | 4.5-inch | N/A |
| Screen Resolution | 1280×720 px | 854×480 px | 854×480 px | 1280×720 px | 854×480 px | 854×480 px | 854×480 px | N/A |
| Screen Panel Type | IPS | IPS | IPS | IPS | IPS | IPS | IPS | N/A |
| Tempered Glass on Screen | √ | √ | √ | √ | √ | √ | √ | N/A |
| Interchangeable Camera | √ | √ | √ | x | √ | √ | √ | √ |
| Probe Type | Reinforced metal with thread-on connector | Reinforced metal with thread-on connector | Reinforced metal with thread-on connector | Bendable metal with articulating tip | Bendable metal with USB-C connector | Bendable metal with USB-C Connector | Bendable metal with USB-C Connector | Reinforced metal with thread-on connector |
| IP Rating | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | Camera probe only IP67 | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | IP45 monitor, IP67 probe | Camera probe only IP67 |
| Image Capturing Resolution | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1280×720 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) | 1920×1080 (JPG) |
| Video Recording Resolution | 1280×720 (AVI) | 1280×720 (AVI) | 1920×1080 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1280×720 (AVI) | 1920×1080 (AVI) |
| Memory Card | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | 32GB microSD Card (Installed) | None |
| Built-in Battery | 3500mAh lithium-ion battery | 5000mAh lithium-ion battery | 3000mAh lithium-ion battery | 3000mAh lithium-ion battery | 3500mAh lithium-ion battery | 2500mAh lithium-ion battery | 2500mAh lithium-ion battery | 2000mAh lithium-ion battery |
| Battery Working Hours | 4.5 hours | 4 hours | 4.5 hours | 4 hours | 5 hours | 4 hours | 4 hours | 4 hours |
| Flash Light | √ | √ | √ | x | √ | x | x | √ |
| Microphone & Speaker | √ | √ | √ | √ | √ | √ | √ | x |
| Wi-Fi | x | x | x | √ | x | x | x | √ |
| Split-Screen View | x | x | √ (8mm probe) | x | x | x | x | √ (dual lens) |
CAMERA PROBE COMPARISON – PROFESSIONAL
| Model Number | CAM3901/03 | CAM5501/03 | CAM7005 | CAM7601/03/05 | CAM12501/03 | CAM55D01/03 | CAM80D01/03/05 | CAM79T01/03/05 | CAMD8RL1/L3/L5 |
|---|---|---|---|---|---|---|---|---|---|
| Use | Professional | Professional | Home DIY | Professional | Professional | Professional | Professional | Professional | Professional |
| How Many Lenses | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 2 |
| Probe Diameter | 0.15-inch (3.9mm) | 0.21-inch (5.5mm) | 0.28-inch (7mm) | 0.29-inch (7.6mm) | 0.49-inch (12.5mm) | 0.21-inch (5.5mm) | 0.31-inch (8mm) | 0.31-inch (7.9mm) | 0.31-inch (9.5mm) |
| Probe Lengths | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) | 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) | 16 ft (5m) | 3.2 ft (1m) 9.8 ft (3m) 16 ft (5m) |
| Auto or Fixed Focus? | Fixed | Fixed | Fixed | Fixed | Auto Focus | Fixed | Fixed | Fixed | Fixed |
| Camera Resolution | 1280×720 px | 1280×720 px | 1920×1080 px | 1280×720 px | 1280×720 px on Monitor 1920×1080 px and 2592×1944 px only available when connect to PC or Mac, an adapter cable is required | 1280×720 px | 1280×720 px | 1280×720 px | 1280×720 px |
| Main Lens Focal Distance | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-3.9 inches (3-10cm) | 1.18-inch to infinity (3cm-infinity) | 1.18-2.36 inches (3-6cm) | 1.18-3.9 inches (3-10cm) | 1.2-4.0 inches (3-10cm) | 1.18-3.15 inches (3-8cm) |
| View Angle | 70º | 70º | 80º | 70º | 70º | 70º | 70º | 70º | 70º |
| Side Lens Resolution | X | X | X | X | X | 1280×720 px | 1280×720 px | 1280×720 px | 1280×720 px |
| Side Lens Focal Distance | X | X | X | X | X | 2cm | 0.78-1.96 inches (2-5cm) | Lens B: 0.78-2.36 inches (2-6cm) Lens C: 0.39-0.98 inches (1-2.5cm) | 0.78-1.96 inches (2-5cm) |
| Side Lens View Angle | X | X | X | X | X | 70º | 70º | 70º | 70º |
| Special Features | NA | NA | NA | NA | NA | NA | NA | NA | Rotating Side Lens |
| Connector Type | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on | Thread-on |
| Material of the Probe | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal | Reinforced, Bendable Metal |
| Berat | 2 kg |
|---|
Spesifikasi
Monitor
Screen 5-inch IPS LCD Screen
Screen Resolution: 854×480 pixels
Image Resolution: 640×480、1280×720、1920×1080 (pixels)
Video Resolution: 640×480、1280×720 (pixels)
Port: Charging Port / TF memory card slot
Power Source: 3000mAh Lithium Polymer Battery
Battery Life: 3-4 hours
Camera
Type: 2-Way 210° Articulation Probe
Diameter: 0.24 inch (6.2mm) / 0.33 inch (8.5mm)
Probe Length: 5.08 ft (1.55 Meters)
Probe Stiffness: Soft for 0.24-inch / Stiff for 0.33-inch
Megapixel: 1.0 megapixel
Viewing Angle: 80º
Depth of Field: 0.60-inch to 3.94-inch (15mm to 100mm)
LED Light: 4 Bright LED lights for 0.24-inch / 8 Bright LED lights for 0.33-inch
Splash, Water, and Dust Resistant: Rated IP67 (maximum depth of 1 meter up to 30 minutes) under IEC standard 60529

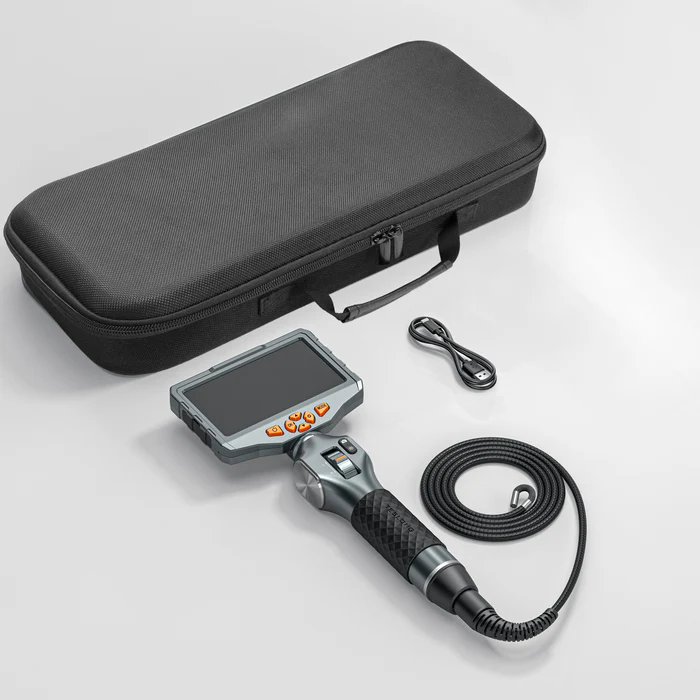

Isi Dalam Box
TD500D Articulating Inspection Camera
USB Cable
Carrying Case
User‘s Manual
